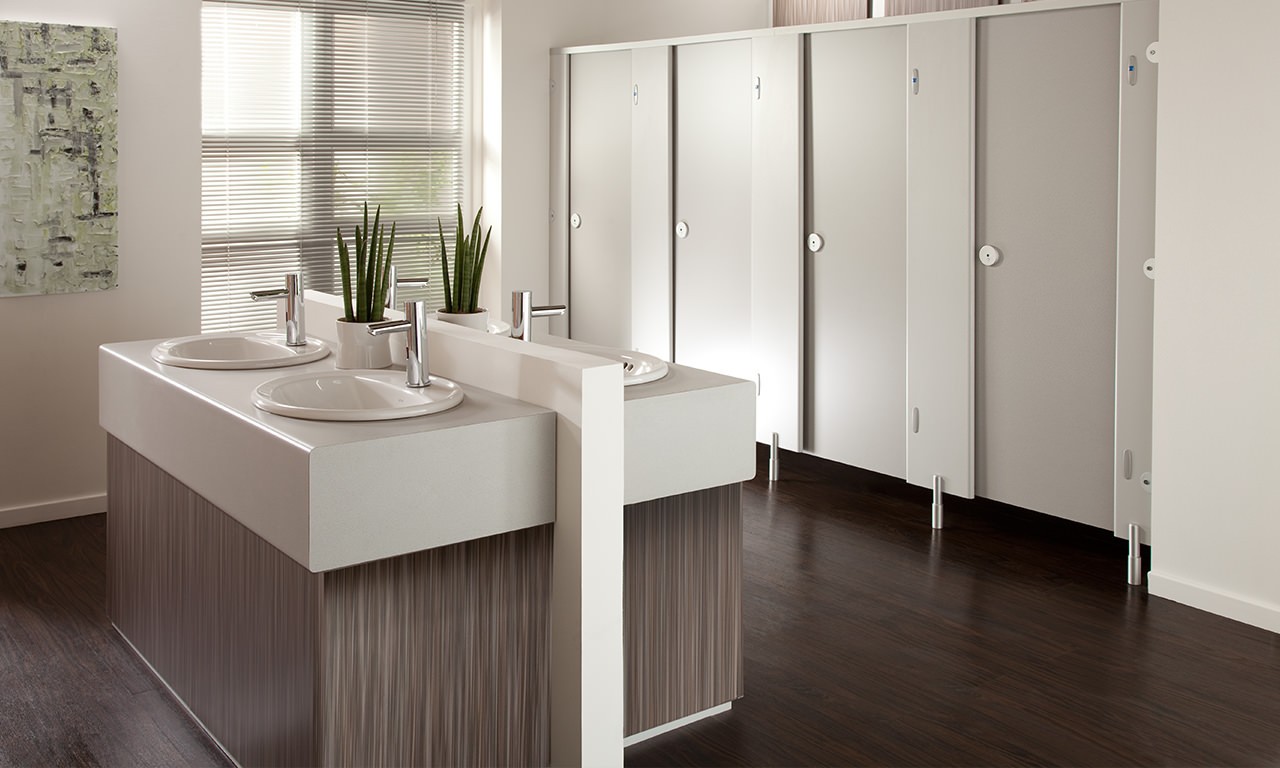

Grampian® HPL Toilet Cubicles

Grampian is a tough cubicle system suited for areas of high traffic and reasonably robust conditions.

Manufactured using High Pressure Laminate (HPL), Grampian cubicle panels can be specified with either solid PVC or post-formed edge details.

Specifier Info

Overview

  • High Pressure Laminate (HPL) panels with extra thick edging of 2mm PVC keeps the panels pristine for longer
  • The laminate bonding process result in a more durable and scratch proof coating which protects against moisture
  • Tamper-proof brackets and hinges can only be operated with an Allen or hex key, not with a coin or screwdriver
  • A vast colour choice
  • Post-formed pilasters available @ extra cost

Specification

Price Scale: High Partiton Depth: 1500mm (standard)
Availability: 10 – 15 working days Cubicle Height: 1955mm (standard)
Environment: Dry only Panels: 19mm (HPL Finish)
Fittings: SAA Edging: PVC or Post-Formed

Questions about your toilet cubicles?

Not sure whether Grampian is right for you? Questions about installation, specifications or design?
Call our friendly team for technical and buying advice on: (01924) 457600

Request a Price

Downloads

Download CAD FileDownload CAD File

CAD Block
.dwg | 237kb

Download BIM FileDownload BIM File

BIM Object
.rfa | 948kb

Download Specification Sheet” width=Download Specification Sheet” width=

Specification Sheet
.pdf | 205kb

Download Image BoardDownload Image Board

Image Board
.pdf | 307kb

Standard Colours for Grampian Cubicles

Grampian colours 1

White
001

Bright White
006

Cream
001

Light Grey
001

Mid Grey
012

Dark Grey
004

Grampian colours 2

Black
001

Speckled Light Grey
M001

Speckled Anthracite
M003

Lime Green
006

Blue
003

Dark Blue
001

Grampian colours 2

Red
001

Beech
003

Maple
001

Non-Standard Grampian Colours

Standard Dimensions

Cubicle dimensions Grampian

Overall Height: 1955mm
Floor Clearance: 155mm
Door Width: 600mm
Door Opening: 550mm
Partition Height: 1800mm
Partition Depth: 1500mm
Start/End Fascia: 150mm
Middle Fascia 300mm

Grampian Cubicle Fittings

Cubicle leg Grampian

Cubicle Leg

Hinge face plate Grampian

Hinge Face Plate

Indicator face Grampian

Indicator Face

Cubicle safety hinge Grampian

Heavy-Duty Cubicle Hinge

Panel Material

High-Pressure-laminate-HPL

High Pressure Laminate (HPL)

Constructed from layers of high quality kraft paper, reinforced by thermosetting resins under high pressure and temperature with one decorative surface. The result is a hygienic 0.8mm thick flexible sheet material.

HPL is bonded onto a high density coreboard to produce a strong finished panel. Panels can be post-formed to create a seamless, curved edge detail.

HPL is suitable for use in areas of high traffic and reasonably robust conditions.

NBS Specification

This product is associated with:
NBS Create clause – 25-05-60/160 Panel cubicle system
NBS clause – K32 Panel cubicles / duct and wall linings / screens (120 PANEL CUBICLES)

Create Specification
