Cairngorm® Anti-Vandal Cubicle System

Cairngorm is suitable for wet environments where hygiene is important, such as hospitals, sports and leisure centres. This range is also popular in high-traffic locations prone to vandalism such as schools, camping sites, railway stations, and motorway services.

Cairngorm can be installed as a shower or toilet cubicle. This product is made-to-measure to optimise the space you have available.

Specifier Info

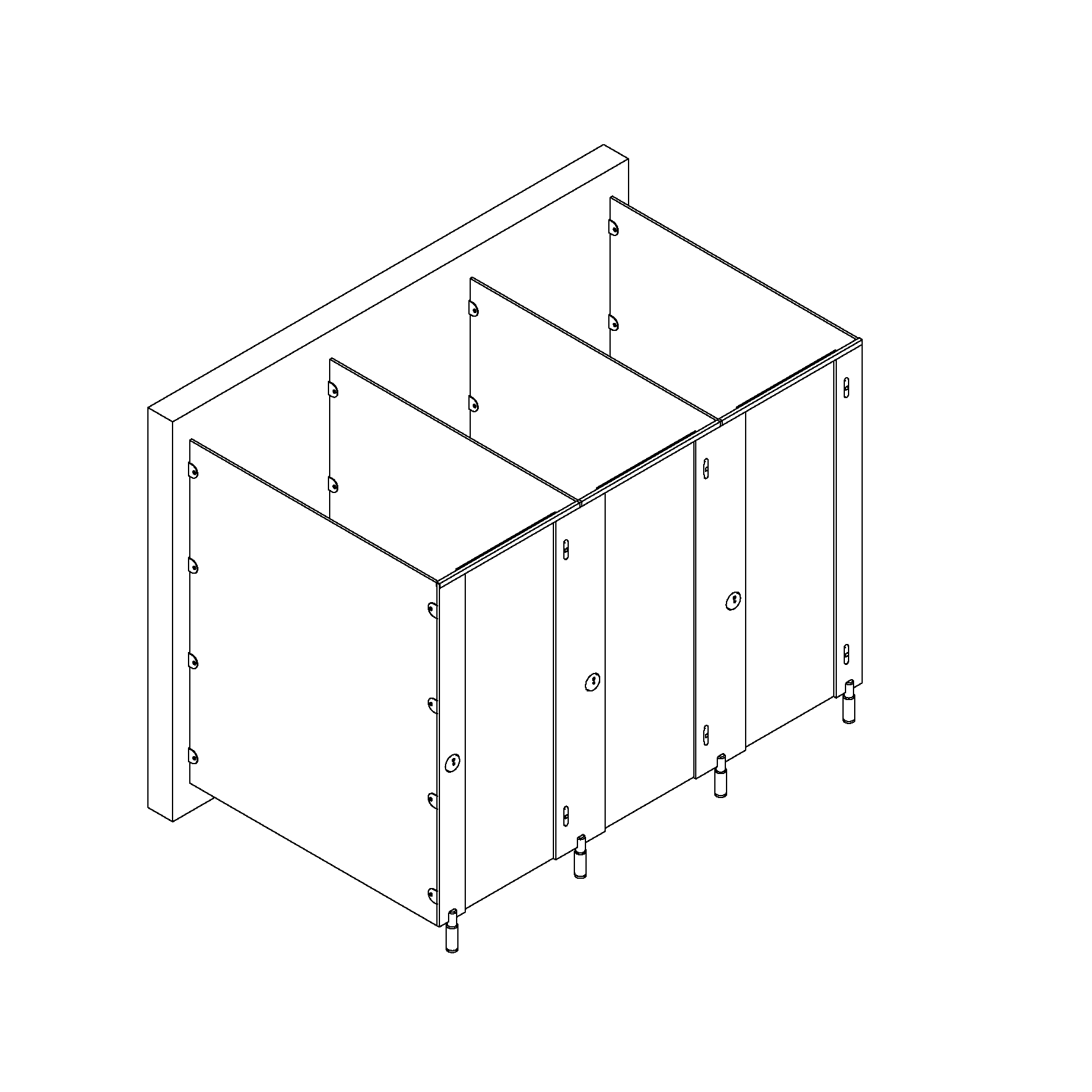

Cairngorm Anti-Vandal Cubicle System Line Drawing

Cairngorm Anti-Vandal Cubicle System with grey partitions and Refresh Oak doors

Overview

Kick-proof panels – sold for over 10 years
Anti-vandal fittings to keep your washrooms in working order
Resistant to most detergents for easy cleaning and hygiene – you can even wash off graffiti
Anti-rust fittings and waterproof panels to prevent mildew and bacteria growth
Door latches that are disabled friendly
Available in an increased height configuration, 2100mm high

Specification

Price Scale:	High	Partiton Depth:	1500mm (standard)
Availability:	10 – 15 working days	Cubicle Height:	1955mm (standard)
Environment:	Dry and Wet	Panels:	13mm CGL
Fittings:	Heavy duty SAA	Edging:	Rounded (black)

This product is associated with:

Uniclass – Ss_25_12_60_60
NBS Create clause – 25-05-60/160 Panel cubicle system
NBS clause – K32 Panel cubicles / duct and wall linings / screens (120 PANEL CUBICLES)

Create Specification

Questions about your shower or toilet cubicles?

Not sure whether Cairngorm is right for you? Questions about installation, specifications or design?
Call our friendly team for technical and buying advice on: (01924) 457600

Request a Price

Downloads

CAD Block
.dwg | 288kb

BIM Object
.rfa | 700kb

Specification Sheet
.pdf | 173kb

Image Board
.pdf | 214kb

Cubicle Centre Brochure
.pdf | 5mb

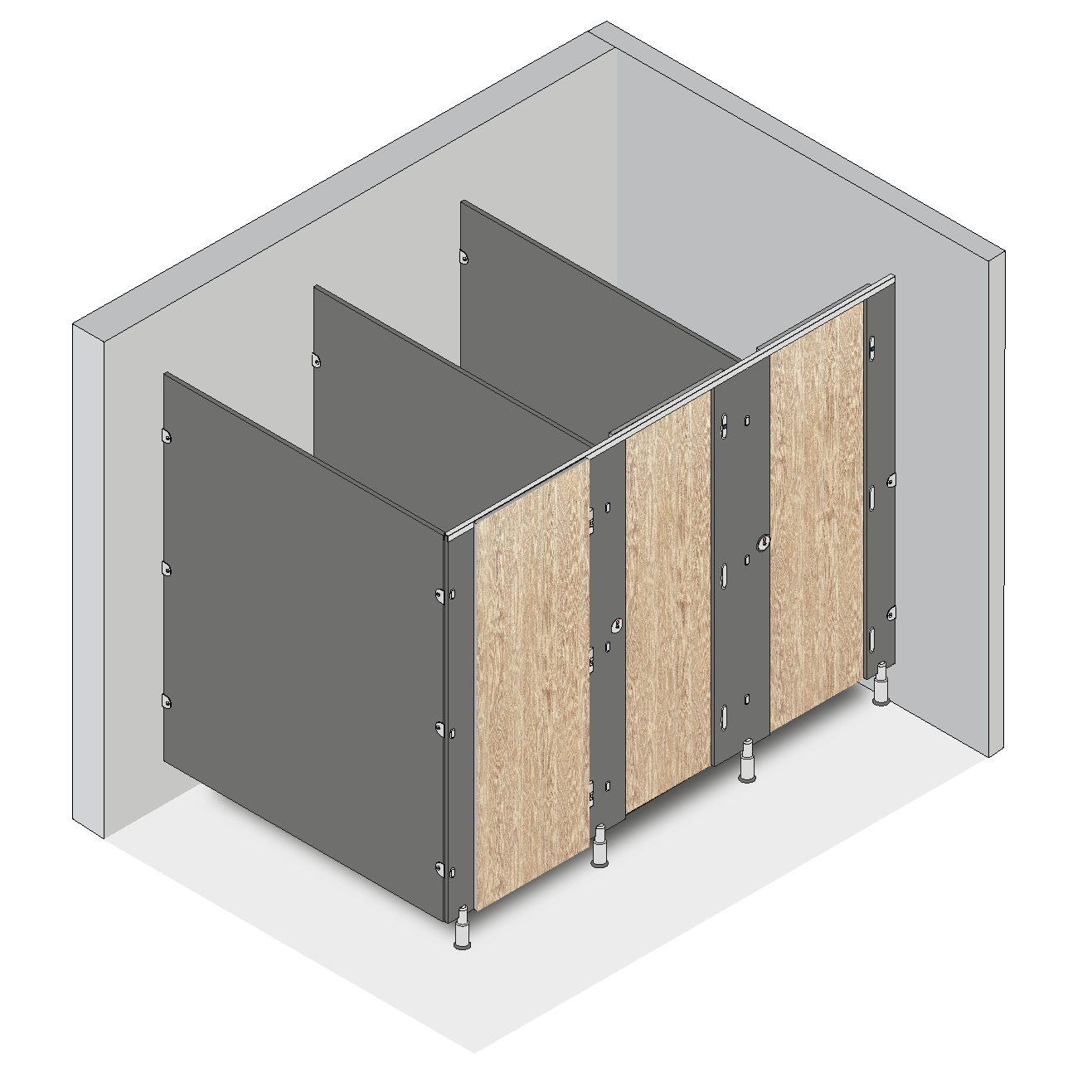

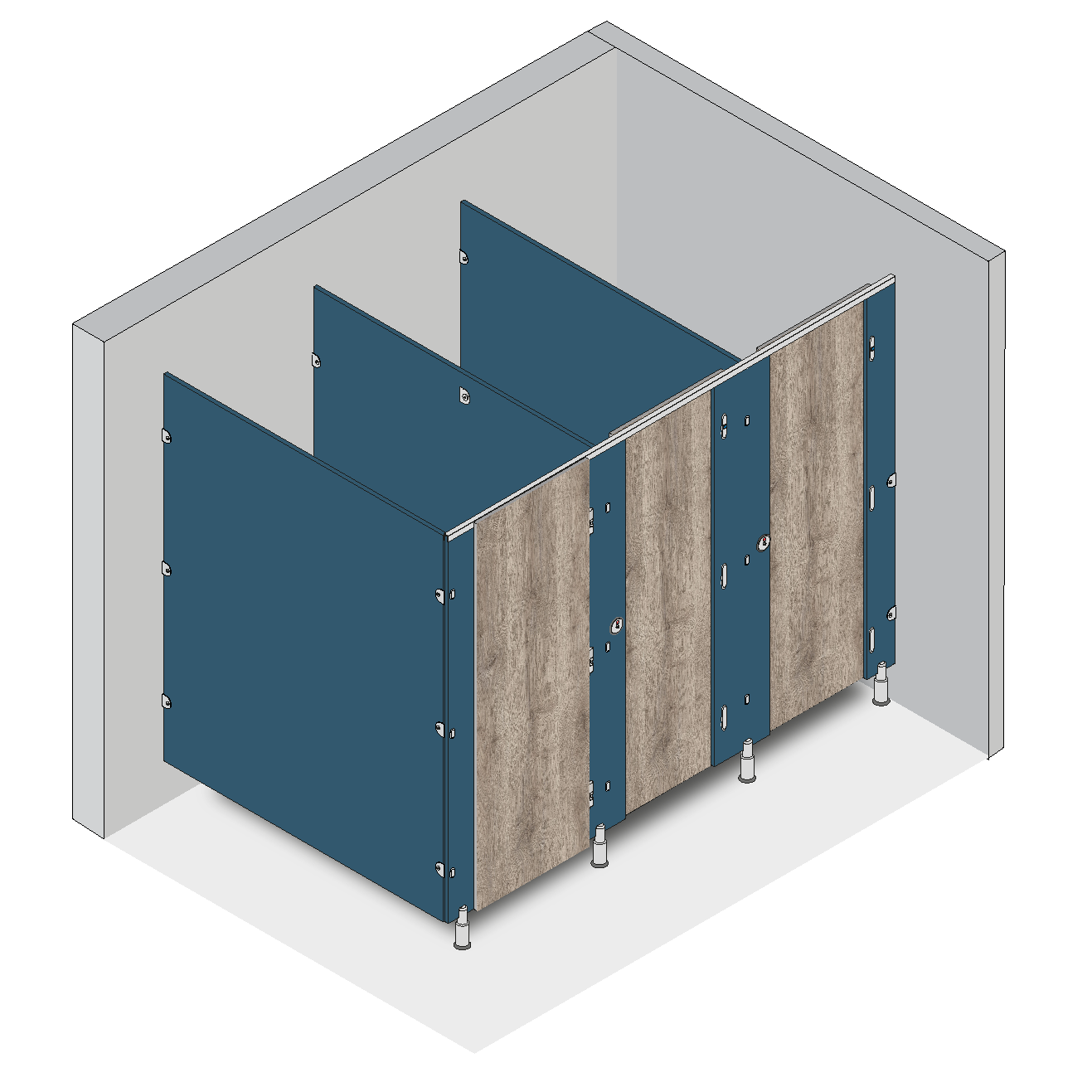

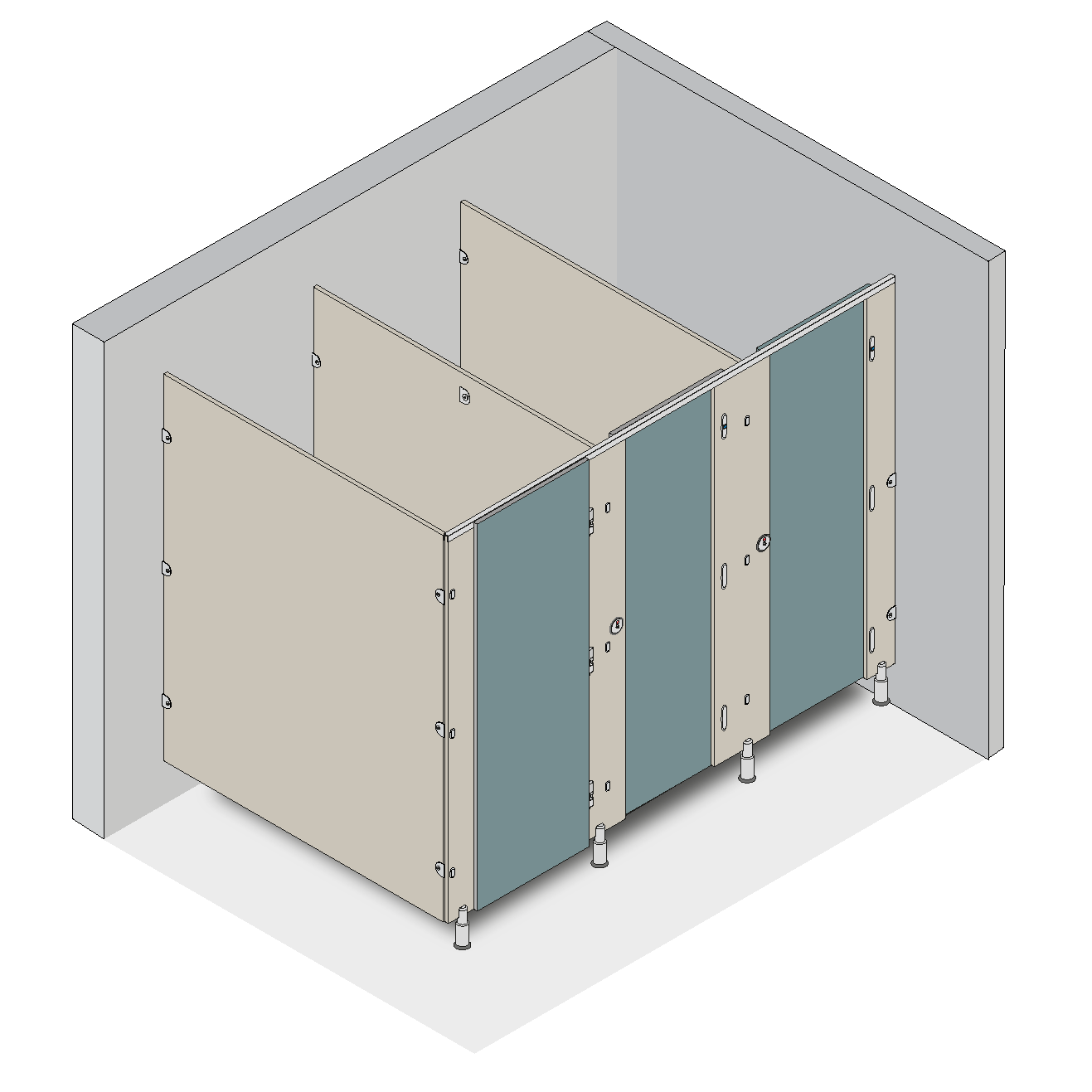

Popular Colours For Cairngorm Cubicles

Cairngorm Anti-Vandal Cubicle System G029 Colour Swatch

Gris Tourterelle
G029

Cairngorm Anti-Vandal Cubicle System G059 Colour Swatch

Gris Orage
G059

Cairngorm Anti-Vandal Cubicle System M001 Colour Swatch

Maryland Clair
M001

Cairngorm Anti-Vandal Cubicle System B001 Colour Swatch

Bleu Flash
B001

Cairngorm Anti-Vandal Cubicle System B100 Colour Swatch

Banian Blanchi
B100

Cairngorm Anti-Vandal Cubicle System B101 Colour Swatch

Banian Noirci
B101

Cairngorm Anti-Vandal Cubicle System B070 Colour Swatch

Blanc Megeve
B070

Cairngorm Anti-Vandal Cubicle System C180 Colour Swatch

Chene Alba
C180

Cairngorm Anti-Vandal Cubicle System C183 Colour Swatch

Chene D’Argent
C183

Cairngorm Anti-Vandal Cubicle System C062 Colour Swatch

Capucine
C062

Cairngorm Anti-Vandal Cubicle System G031 Colour Swatch

Genet
G031

Cairngorm Anti-Vandal Cubicle System M047 Colour Swatch

Mousse
M047

Standard Cairngorm Range

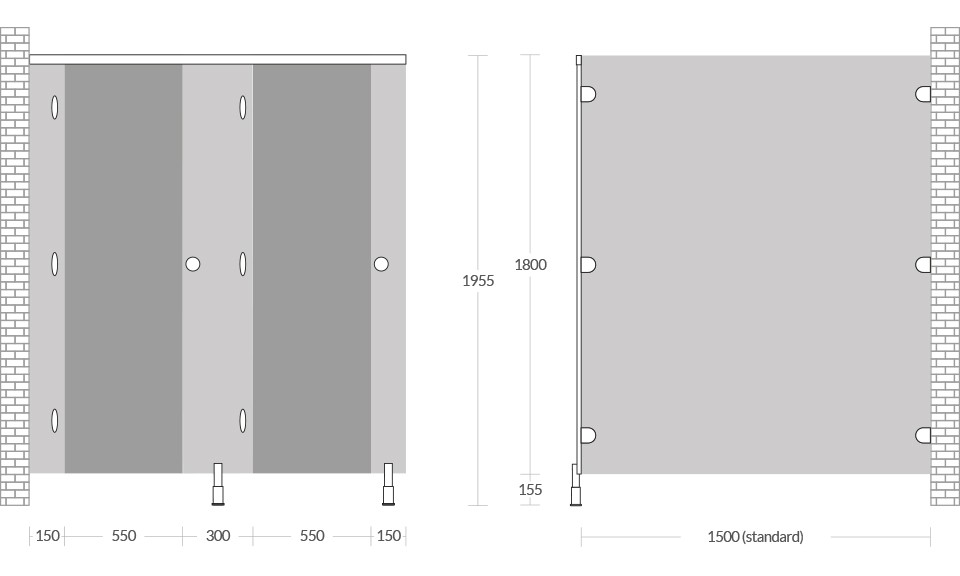

Standard Dimensions

Cubicle dimensions Cairngorm

Overall Height:	1955mm
Floor Clearance:	155mm

Door Width:	600mm
Door Opening:	550mm

Partition Height:	1800mm
Partition Depth:	1500mm

Start/End Fascia:	150mm
Middle Fascia	300mm

Cairngorm Cubicle Fittings

Cairngorm Anti-Vandal Cubicle System Wide base leg

Wide Base Leg

Cairngorm Anti-Vandal Cubicle System Robust latch

Robust Latch

Cairngorm Anti-Vandal Cubicle System Indicator face

Indicator Face

Cairngorm Anti-Vandal Cubicle System Safety hinge

Heavy-Duty Cubicle Hinge

Panel Material

CGL panel material

Compact Grade Laminate (CGL)

Constructed from multiple layers of high quality kraft paper, reinforced by thermosetting resins under high pressure and temperature. This produces tough, high density, totally waterproof and hygienic panels that have a high level of strength.

All visible CGL panel edges are machined to a smooth round profile.

CGL is the ideal choice for washroom and changing room areas that have very high traffic, robust and wet conditions.

To prove just how durable our CGL panels are, we put them to the ultimate test.
