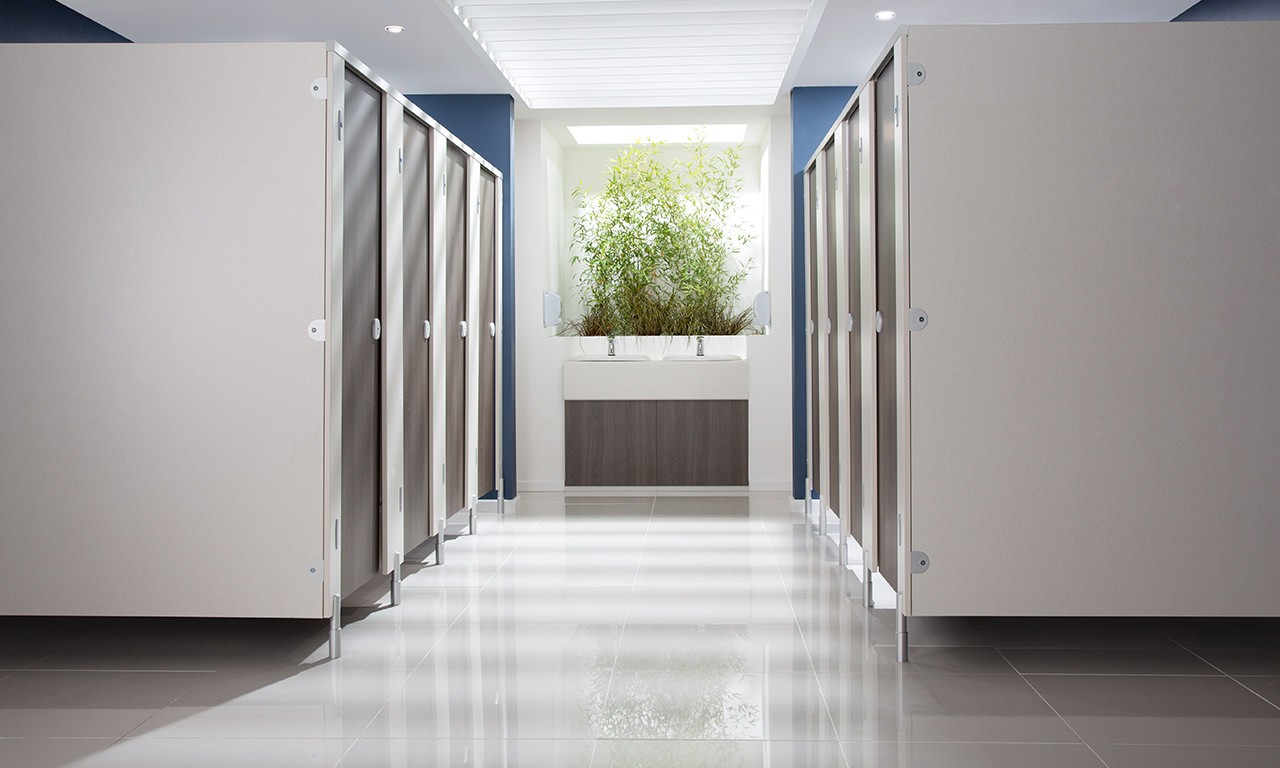

Malvern Plus® MFC Toilet Cubicles

Have a particular colour in mind?

Or just love to have plenty of choice?

Malvern Plus is the same specification as Malvern but with a lot more colour choice for your doors and panels. Over 100 colours available.

Overview

  • Choice of over 100 colours
  • Melamine Faced Chipboard (MFC) panels with an extra thick edging of 2mm PVC keep your panels pristine for longer
  • Rounded and sealed edges protect against moisture
  • Tamper-proof brackets and hinges can only be operated with an Allen or hex key, not with a coin or screwdriver

Specification

Price Scale: Medium Partiton Depth: 1500mm (standard)
Availability: 10 – 15 working days Cubicle Height: 1955mm (standard)
Environment: Dry only Panels: 18mm MFC
Fittings: SAA Edging: Solid PVC

NBS Specification

This product is associated with:

Uniclass – Ss_25_12_60_60
NBS Create clause – 25-05-60/160 Panel cubicle system
NBS clause – K32 Panel cubicles / duct and wall linings / screens (120 PANEL CUBICLES)

Questions about your toilet cubicles?

Not sure whether Malvern Plus is right for you? Questions about installation, specifications or design?
Call our friendly team for technical and buying advice on: (01924) 457600

Downloads

Download CAD FileDownload CAD File

CAD Block
.dwg | 254kb

Download BIM FileDownload BIM File

BIM Object
.rfa | 1mb

Download Specification Sheet” width=Download Specification Sheet” width=

Specification Sheet
.pdf | 212kb

Download Image BoardDownload Image Board

Image Board
.pdf | 272kb

Popular Colours for Malvern Plus Cubicles

Mocha Showerwall panel in a clean modern bathroom navy blue

Blue

Mocha Showerwall panel in a clean modern bathroom red

Red

Mocha Showerwall panel in a clean modern bathroom yellow

Yellow

Mocha Showerwall panel in a clean modern bathroom green

Green

Mocha Showerwall panel in a clean modern bathroom white

White

Mocha Showerwall panel in a light yellow

Cream

Mocha Showerwall panel in a clean white

Plain Grey

Mocha panel in a clean modern bathroom brown

Stone Grey

Mocha Showerwall panel in a clean modern bathroom turqoise

Blueberry

Mocha Showerwall panel in a clean modern light green

Kiwifruit

Mocha Showerwall panel in a clean orange

Mango

Mocha Showerwall panel in a clean modern pink

Dragon Fruit

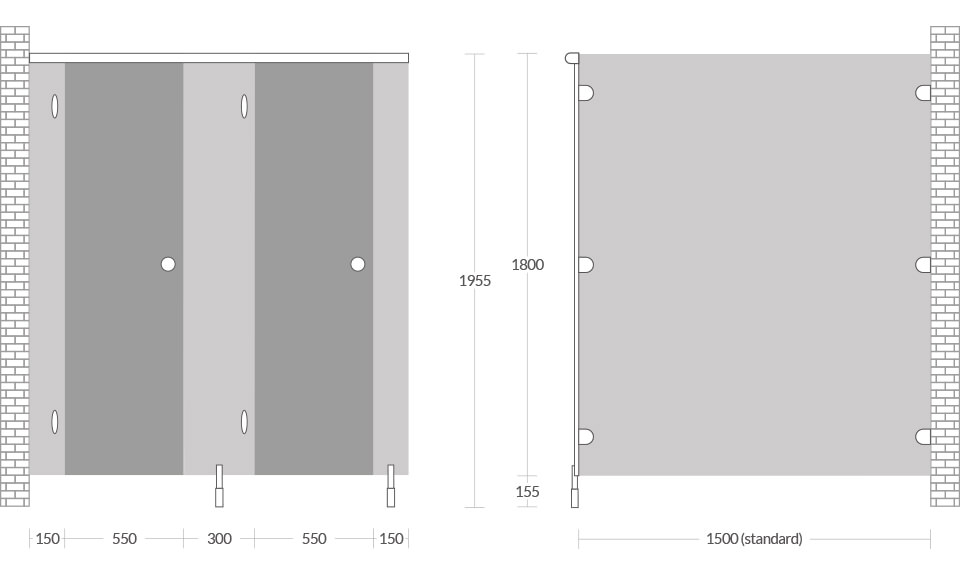

Standard Dimensions

Cubicle dimensions Malvern Plus

Overall Height: 1955mm
Floor Clearance: 155mm
Door Width: 600mm
Door Opening: 550mm
Partition Height: 1800mm
Partition Depth: 1500mm
Start/End Fascia: 150mm
Middle Fascia 300mm

Malvern Plus Cubicle Fittings

Cubicle leg Malvern Plus

Cubicle Leg

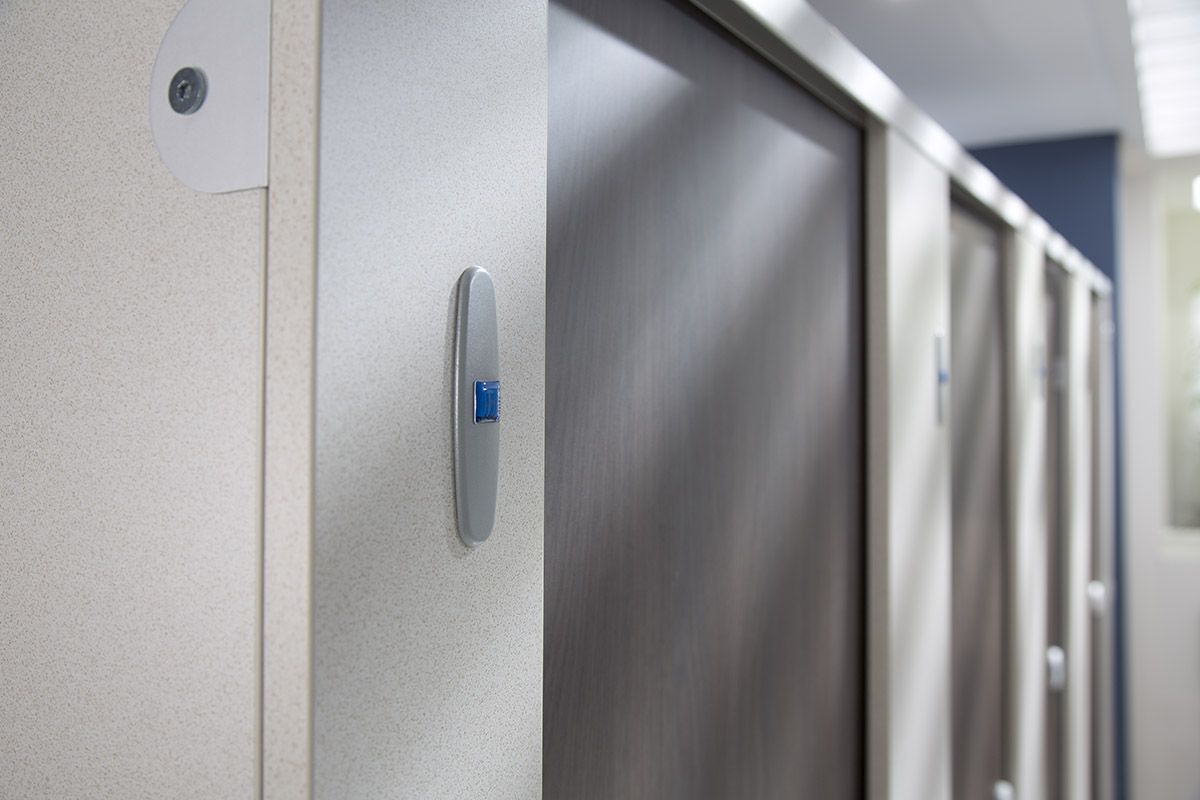

Cubicle hinge face plate Malvern Plus

Hinge Face Plate

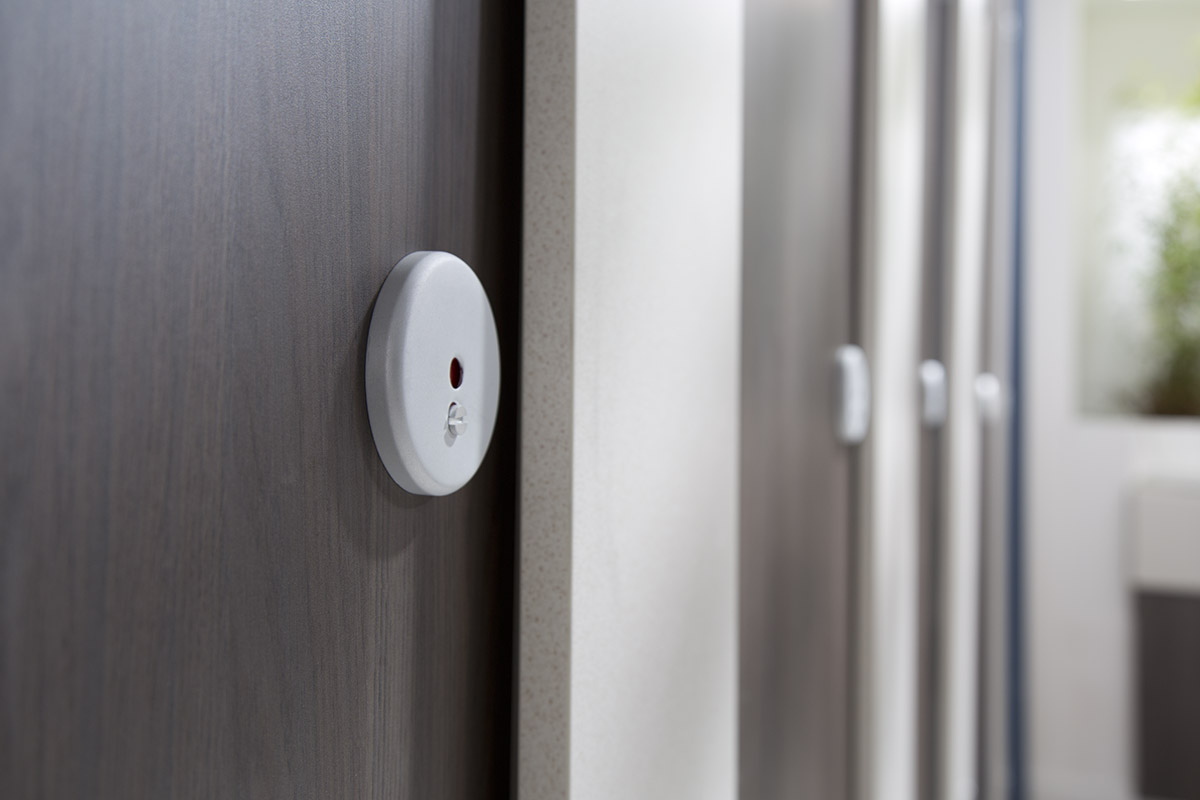

Indicator face Malvern Plus

Indicator Face

Pilaster bracket Malvern Plus

Panel Bracket

Panel Material

Melamine Faced Chipboard (MFC)

Melamine Faced Chipboard (MFC)

Melamine Faced Chipboard incorporates two decorative melamine surfaces bonded to both sides of high density chipboard under high pressure and temperature.

All visible MFC panels have impact resistant, PVC edging applied.

MFC is a cost effective, hygienic and lightweight solution for all non-wet toilet areas.
