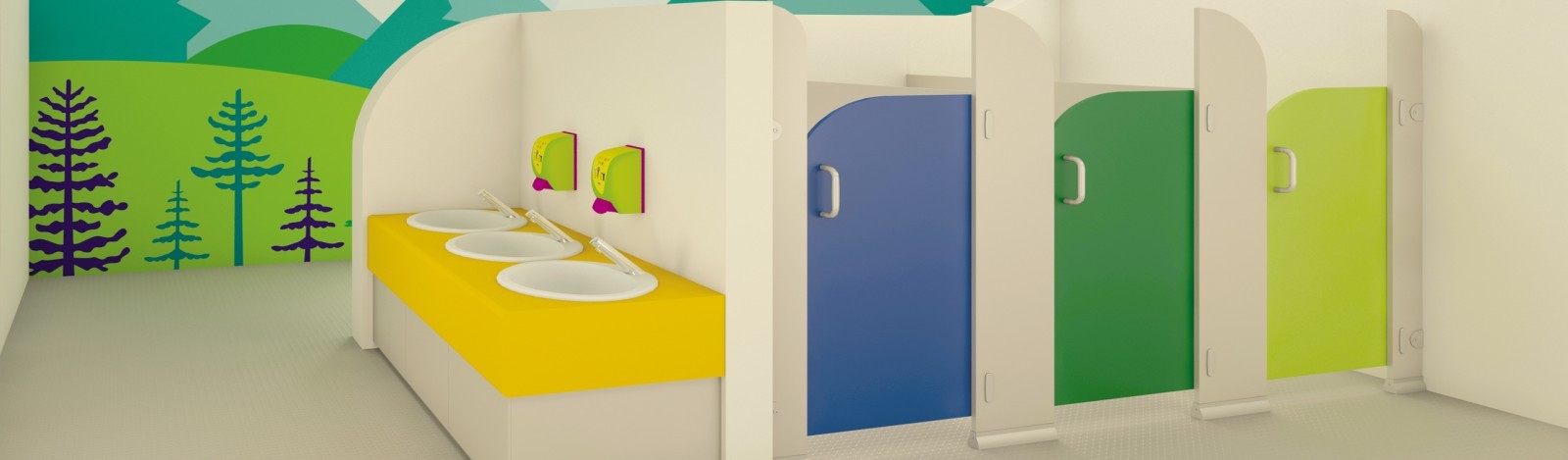

Sydney® Pre-School Toilet Cubicles

Do you need toilet cubicles for your nursery or pre-school?

Sydney cubicles are fun, unique and safe. The curved doors and partitions make the washroom exciting. A magnetic door catch means children of all ages can easily use the cubicles without fear of catching their fingers.

What about a space adventure themed washroom? Or colourful chameleons? Our unique vinyl designs add an element of fun, creating a welcoming environment for small children.

Overview

  • Unique curved design
  • Low-height doors so teachers can supervise children
  • Magnetic door catches for easy use and so small fingers won’t get squished
  • Melamine Faced Chipboard (MFC) panels with an extra thick edging of 2mm PVC keep your panels pristine for longer
  • For fully water-resistant panels, choose Sydney CGL

Specification

Price Scale: Medium Partiton Depth: 1500mm (standard)
Availability: 10 – 15 working days Cubicle Height: 1500mm (overall)
Environment: Dry only Panels: 18mm MFC
Fittings: SAA Edging: Smooth edge PVC

Questions about toilet cubicles for children?

Not sure whether Sydney is right for you? Questions about installation, specifications or design?
Call our friendly team for technical and buying advice on: (01924) 457600

Downloads

Download CAD FileDownload CAD File

CAD Block
.dwg | 286kb

Download BIM FileDownload BIM File

BIM Object
.rfa | 668kb

Download Specification Sheet” width=Download Specification Sheet” width=

Specification Sheet
.pdf | 180kb

Download Image BoardDownload Image Board

Image Board
.pdf | 218kb

Sydney Cubicle Colours

Brecon MFC Colours 1

Blue

Red

Yellow

Green – 7190

White

Cream

Brecon MFC Colours 2

Plain Grey

Stone Grey

Blueberry

Kiwifruit

Mango

Dragon Fruit

Popular Vinyl Designs

Cubicle Centre offer an alternative range of exclusive vinyl designs which can be applied to your cubicle doors on request. See below for some of the designs available. You can also request a vinyl sample via post (UK). Click the button below.

Door vinyls Happy Everything

Happy Everything

Childrens door design Space Adventure

Space Adventure

School vinyl design Colourful Chameleons

Colourful Chameleons

Fun cubicle design ocean view

Ocean View

Happy Everything vinyl door design

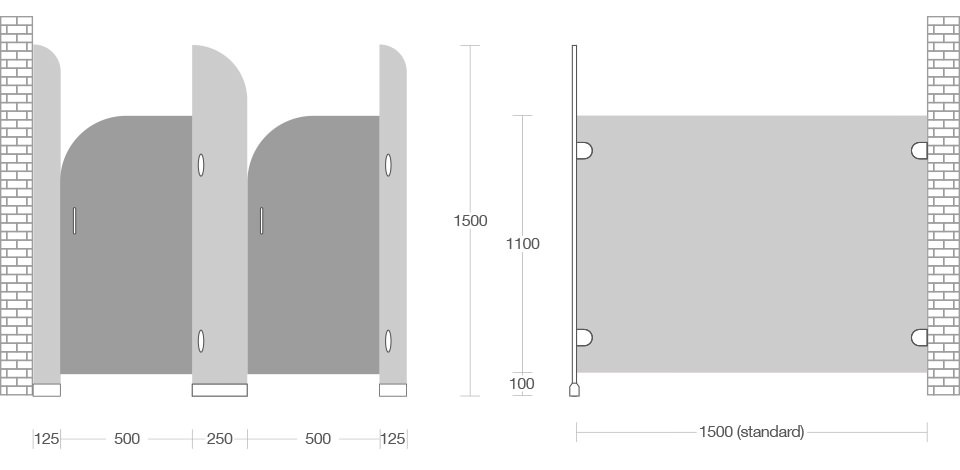

Standard Dimensions

Cubicle dimensions Sydney

Overall Height: 1500mm
Floor Clearance: 100mm
Door Width: 550mm
Door Opening: 500mm
Partition Height: 1100mm
Partition Depth: 1500mm
Start/End Fascia: 1250mm
Middle Fascia 250mm

Sydney Cubicle Fittings

Cubicle floor support Sydney

Floor Support

Safety magnetic door catch Sydney

Magnetic Catch

Childrns cubicle curved door Sydney

Curved Door

Cubicle safety hinge Sydney

Anti-Trap Hinge

Panel Material

Melamine Faced Chipboard (MFC)

Melamine Faced Chipboard (MFC)

Melamine Faced Chipboard incorporates two decorative melamine surfaces bonded to both sides of high density chipboard under high pressure and temperature.

All visible MFC panels have impact resistant, PVC edging applied.

MFC is a cost effective, hygienic and lightweight solution for all non-wet toilet areas.

NBS Specification

This product is associated with:
NBS Create clause – 25-05-60/160 Panel cubicle system
NBS clause – K32 Panel cubicles / duct and wall linings / screens (120 PANEL CUBICLES)

Find Me On NBS Plus

nbs plus
