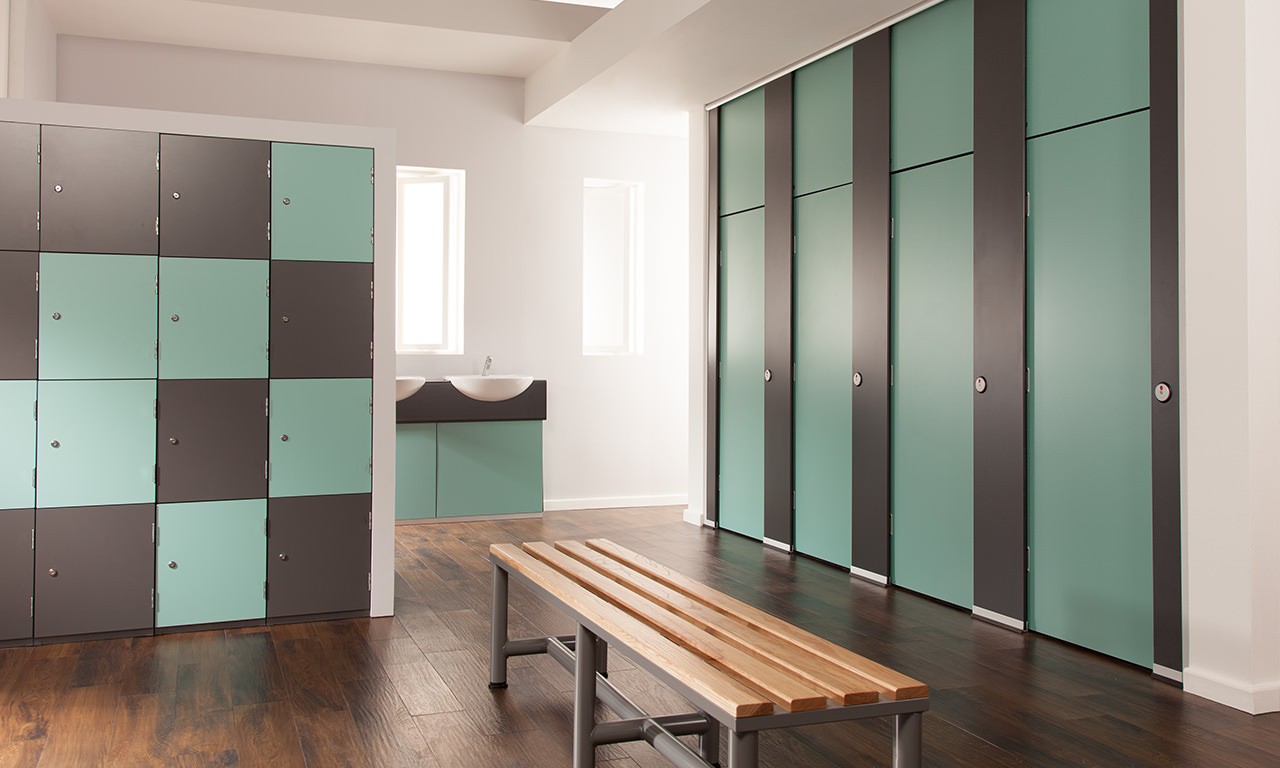

Privacy™ Full Height Toilet Cubicles

For the ultimate in washroom privacy look no further.

Durability combined with a functional, clean design make this full height WC cubicle system a winning formula for modern commercial washrooms.

Panels are secured with full length aluminium wall and floor channels and no fixings are visible from the the exterior of the cubicles.

Cubicle Centre recommend that this product is installed by a team of qualified joiners.

Overview

  • Full height system for complete user privacy
  • Kick-proof panels – sold for over 10 years
  • Anti-vandal fittings to keep your washrooms in working order
  • Resistant to most detergents for easy cleaning and hygiene – you can even wash off graffiti
  • Anti-rust fittings and waterproof panels to prevent mildew and bacteria growth

Specification

Price Scale: High Partiton Depth: 2000mm (up to)
Availability: 10 – 20 working days Cubicle Height: 2600mm (up to)
Environment: Dry and Wet Panels: 13mm CGL
Fittings: Heavy duty SAA Edging: Rounded (black)

This product is associated with:

Uniclass – Ss_25_12_60_60
NBS Create clause – 25-05-60/130 Fully-framed panel cubicle system
NBS clause – K32 Panel cubicles / duct and wall linings / screens (112 FULLY FRAMED PANEL CUBICLES)

Questions about your toilet cubicles?

Not sure whether Privacy is right for you? Questions about installation, specifications or design?
Call our friendly team for technical and buying advice on: (01924) 457600

Downloads

Download CAD FileDownload CAD File

CAD Block
.dwg | 276kb

Download BIM FileDownload BIM File

BIM Object
.rfa | 676kb

Download Specification Sheet” width=Download Specification Sheet” width=

Specification Sheet
.pdf | 156kb

Download Image BoardDownload Image Board

Image Board
.pdf | 189kb

Popular Colours for Privacy Cubicles

B100

Banian Blanchi
B100

Mocha Showerwall panel

Chene Colorado
C149

Mocha Showerwall panel in a clean modern bathroom yellow

Genet
G031

Mocha Showerwall panel in a clean modern bathroom pink

Rose Indien
R059

Mocha Showerwall panel in a clean modern bathroom turqoise

Bleu Turquoise
B119

Mocha Showerwall panel in a clean modern bathroom green

Vert Bali
V109

Mocha Showerwall panel in a clean modern bathroom green

Cactus
C049

Mocha Showerwall panel in a clean

Gris Cendre
G075

C101

Noyer Havana Horizontal
N115

N005

Noir
N005

C017

Coquille dOeuf
C017

Malvern Plus B New modern bathroom grey

Mabre Siroco
M134

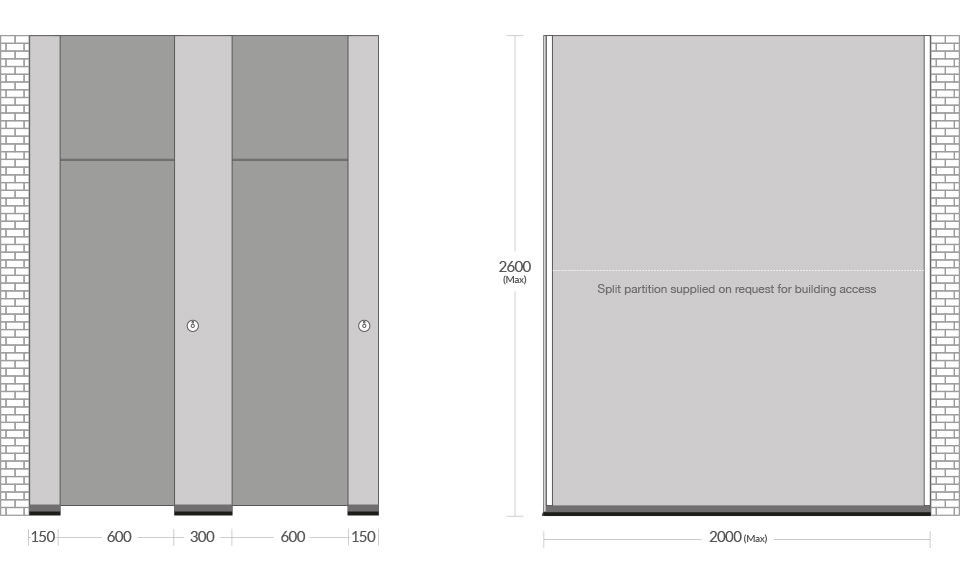

Standard Dimensions

Cubicle dimensions Privacy

Overall Height: 2500mm
Floor Clearance: 15mm
Door Width: 650mm
Door Opening: 600mm
Partition Height: 2500mm
Partition Depth: 1500mm
Start/End Fascia: 150mm
Middle Fascia 300mm

Privacy Cubicle Fittings

Cubicle floor channel Privacy

Pilaster Channel

Single action latch Privacy

Robust ‘Single Action’ Latch

Indicator face Privacy

Indicator Face

Cubicle safety latch Privacy

Hidden Heavy-Duty Hinge

Panel Material

Compact Grade Laminate (CGL)

Compact Grade Laminate (CGL)

Constructed from multiple layers of high quality kraft paper, reinforced by thermosetting resins under high pressure and temperature.  This produces tough, high density, totally waterproof and hygienic panels that have a high level of strength.

All visible CGL panel edges are machined to a smooth round profile.

CGL is the ideal choice for washroom and changing room areas that have very high traffic, robust and wet conditions.

To prove just how durable our CGL panels are, we put them to the ultimate test.
