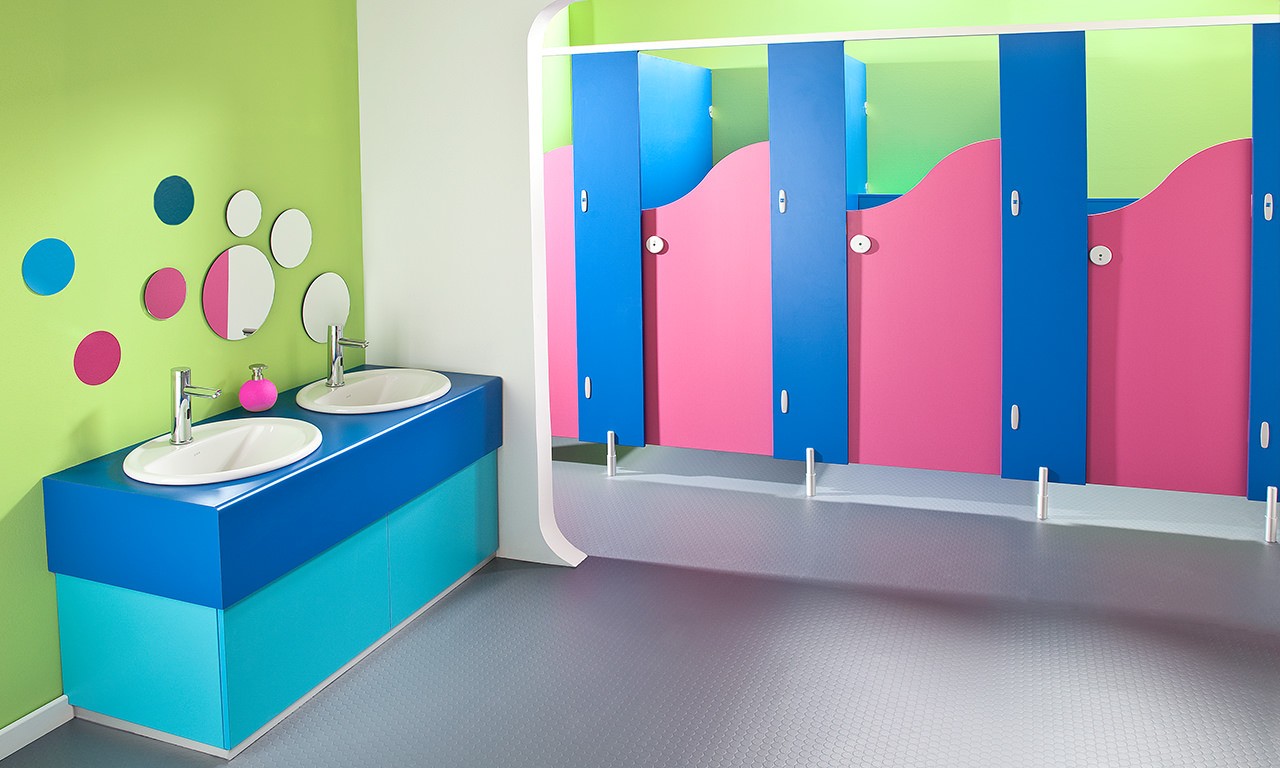

Brecon® Junior School Toilet Cubicles

The Brecon range is the most popular choice for junior schools.

Choose from square, arch, or reverse-curve door profiles, and from a range of vibrant colours – Blueberry, Mango and Dragon Fruit are popular options.

What about a space adventure themed washroom? Or colourful chameleons? Our unique vinyl designs add an element of fun, creating a welcoming environment for small children.

Specifier Info


  • An extra thick edging of 2mm PVC keeps your panels looking pristine for longer
  • Rounded and sealed edges protect against moisture
  • Anti-trap hinges create a gap between the door and panel, so small fingers won’t get squished
  • Low-height doors so teachers can supervise children
  • A choice of coloured or brushed metal fittings
  • For fully water-resistant panels, choose Brecon CGL


Price Scale: Medium Partiton Depth: 1500mm (standard)
Availability: 10 – 15 working days Cubicle Height: 1955mm (standard)
Environment: Dry only Panels: 18mm MFC
Fittings: SAA / Powder Coated Edging: Solid PVC

Questions about school toilet cubicles?

Not sure whether Brecon is right for you? Questions about installation, specifications or design?
Call our friendly team for technical and buying advice on: (01924) 457600

Request a Price


Download CAD FileDownload CAD File

CAD Block
.dwg | 107kb

Download BIM FileDownload BIM File

BIM Object
.rfa | 1.3mb

Download Specification SheetDownload Specification Sheet

Specification Sheet
.pdf | 188kb

Download Image BoardDownload Image Board

Image Board
.pdf | 209kb

Brecon Cubicle Colours

Brecon MFC Colours 1




Green – 7190



Brecon MFC Colours 2

Plain Grey

Stone Grey




Dragon Fruit

Vinyl Designs

Cubicle Centre offer an alternative range of exclusive vinyl designs which can be applied to your cubicle doors on request. See below for some of the designs available. You can also request a vinyl sample via post (UK). Click the button below.

Door vinyls Happy Everything

Happy Everything

Childrens door design Space Adventure

Space Adventure

School vinyl design Colourful Chameleons

Colourful Chameleons

Fun cubicle design ocean view

Ocean View

Request a vinyl sample via post

Children's vinyl cubicle door designs

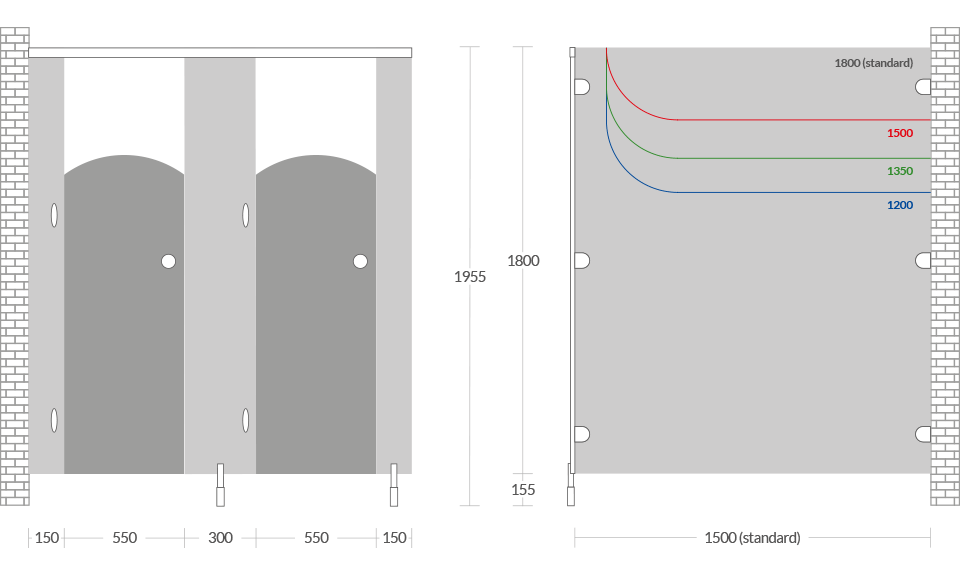

Standard Dimensions

Cubicle dimensions Brecon

Overall Height: 1955mm
Floor Clearance: 155mm
Door Width: 600mm
Door Opening: 550mm
Partition Height: 1800mm
Partition Depth: 1500mm
Start/End Fascia: 150mm
Middle Fascia 300mm

Brecon Cubicle Fittings

Adjustable cubicle leg Brecon

Cubicle Leg

Cubicle latch Brecon

Cubicle Latch

Indicator Face Brecon

Indicator Face

Cubicle hinge Brecon

Anti-Trap Hinge

Panel Material

MFC cubicle panel

Melamine Faced Chipboard (MFC)

Melamine Faced Chipboard incorporates two decorative melamine surfaces bonded to both sides of high density chipboard under high pressure and temperature.

All visible MFC panels have impact resistant, PVC edging applied.

MFC is a cost effective, hygienic and lightweight solution for all non-wet toilet areas.

NBS Specification

This product is associated with:
NBS Create clause – 25-05-60/160 Panel cubicle system
NBS clause – K32 Panel cubicles / duct and wall linings / screens (120 PANEL CUBICLES)

Create Specification
Find Me On NBS Plus
