Wall Panel Systems for Commercial Washrooms

Would you like to give your washrooms a professional or fun look?

For a professional look to your wall panel systems, choose from a selection of greys or anthracite. To add a dash of fun, opt for Mango or Blueberry. The choice is yours.

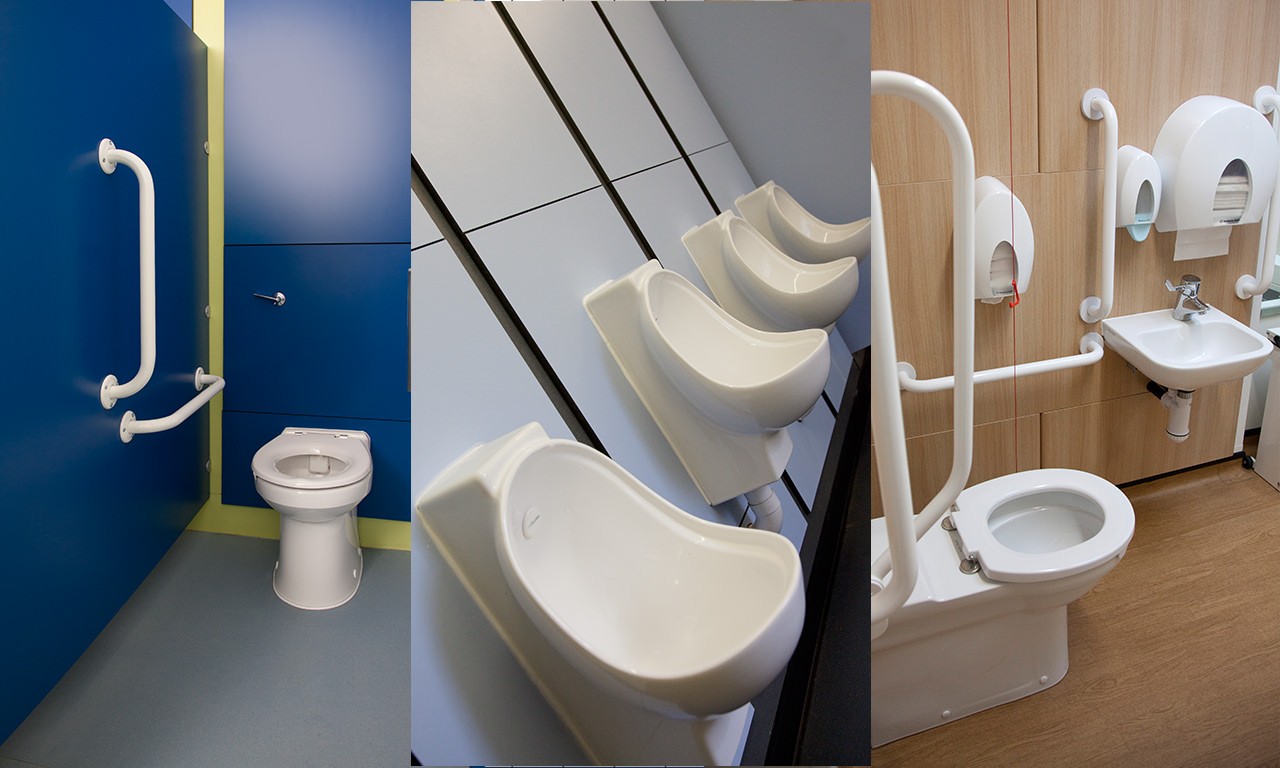

Full-height panel systems protect your walls. They’re usually installed behind toilet pans and urinals, and in disabled toilet rooms. These panels are more hygienic and easier to clean than painted walls.

Specifier Info

Overview

  • Full-height wall panel system for easy cleaning and a finished look

  • Made to measure, so they’re suitable for any ceiling height

  • PVC sealed edges for protection against moisture (MFC panels only)

  • Fully water-proof material (CGL panels only) – suitable for wet and high-traffic areas

  • Supplied as kit for self-assembly, complete with flash-gap material and suspension fittings; please note that timber frames are not included

Wall Panel System Options

wall panel systems for toilets
wall panel systems for urinals

Questions about your wall panels?

Not sure whether wall panelling is right for you? Questions about installation, specifications or design?
Call our friendly team for technical and buying advice on: (01924) 457600

REQUEST A PRICE

Fitting Instructional Video

Downloads

Download CAD File for wall panel systemsDownload CAD File for wall panel systems

CAD Block
.dwg | 239kb

Download BIM File for wall panel systemsDownload BIM File for wall panel systems

BIM Object
.rfa | 940kb

Download Specification Sheet for wall panel systemsDownload Specification Sheet for wall panel systems

Specification Sheet
.pdf | 200kb

Download Image BoardDownload Image Board

Image Board
.pdf | 239kb

.

Standard Dimensions

Washroom wall panel systems dimensions drawing
Overall Height: Varies according to cubicle / room dimensions
Panels: 18mm thick, Melamine Faced Chipboard (MFC) as standard with protective 2.0mm PVC to all exposed edges. CGL can be supplied on request,  at extra cost
Boxed Unit: 20mm thick front panels with High Pressure Laminate finish

Wall Panel Specification

This product is associated with:
NBS Create clause – 25-85-45/120 Duct and wall panel lining system
NBS clause – K32 Panel cubicles / duct and wall linings / screens (160 DUCT LININGS – PREPLUMBED PANELS AND PROPRIETARY FRAMES)

mfc wall panel specification
hpl wall panel specification
cgl wall panel specification
