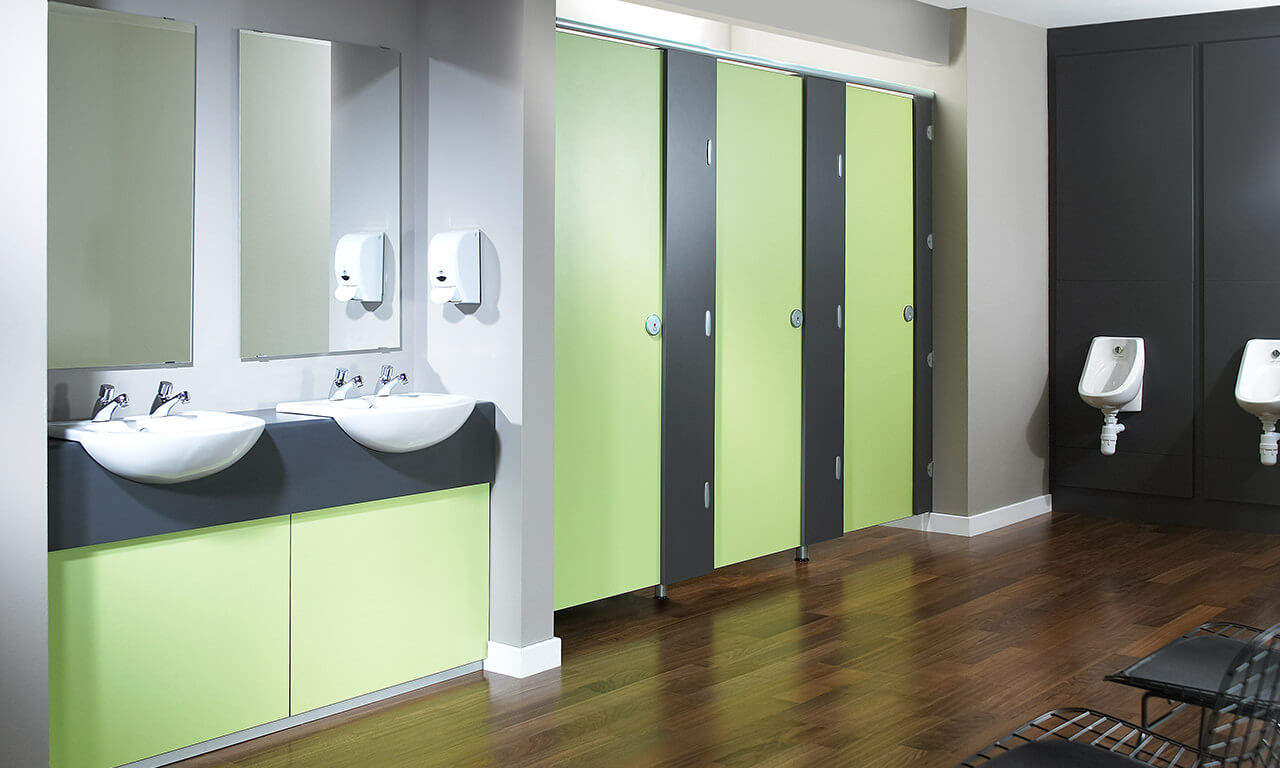

Increased Height WC Cubicles

When a standard size cubicle does not fit your requirements, we can now offer our best cubicle ranges in an increased height configuration.

More height (2100mm), less floor clearance (100mm) offer extra privacy.

Available in four different panel materials to suit any washroom environment. Ranges available in the increased height configuration include Malvern Plus, Grampian, Cairngorm and Cambrian.

Specifier Info

Overview

  • Increased cubicle height of 2100mm and a reduced floor clearance of 100mm
  • Available in a choice of panel materials including MFC, HPL, CDF, CGL
  • A wide colour choice of each panel material
  • Choice of panel material to suit any washroom environment

Specification

Price Scale: Medium – High Partiton Depth: 1800mm (max)
Availability: 10 – 15 working days Cubicle Height: 2100mm
Environment: Various Panels: 18mm MFC, 19mm HPL, 13mm CGL, 13mm CDF
Fittings: Heavy duty SAA Edging: Various

Questions about your toilet cubicles?

Not sure you need Increased Height Cubicles? Questions about installation, specifications or design?
Call our friendly team for technical and buying advice on: (01924) 457600

Request a Price

Downloads

Download CAD FileDownload CAD File

CAD Block
.dwg | 260kb

Download BIM FileDownload BIM File

BIM Object
.rfa | 1mb

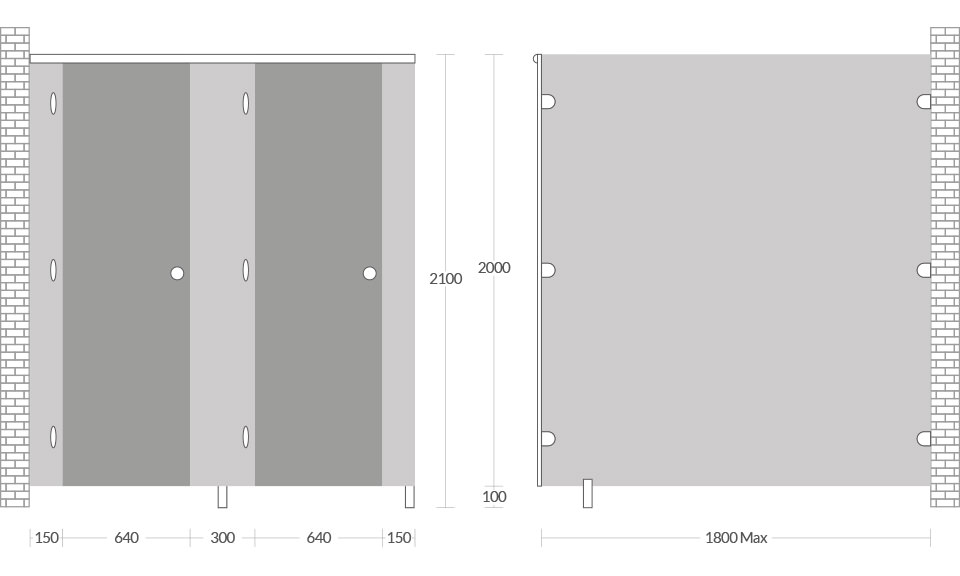

Standard Dimensions

Cubicle dimensions Increased Height

Overall Height: 2100mm
Floor Clearance: 100mm
Door Width: 690mm
Door Opening: 640mm
Partition Height: 2000mm
Partition Depth: 1800mm
Start/End Fascia: 150mm
Middle Fascia 300mm

Choice of Panel Materials

Melamine Faced Chipboard (MFC)

Malvern Plus
Melamine Faced Chipboard (MFC)

Melamine Faced Chipboard incorporates two decorative melamine surfaces bonded to both sides of high density chipboard under high pressure and temperature.

All visible MFC panels have impact resistant, PVC edging applied.

MFC is a cost effective, hygienic and lightweight solution for all non-wet toilet areas.

MFC COLOURS
High Pressure Laminate (HPL)

Grampian
High Pressure Laminate (HPL)

Constructed from layers of high quality kraft paper, reinforced by thermosetting resins under high pressure and temperature with one decorative surface. The result is a hygienic 0.8mm thick flexible sheet material.

HPL is bonded onto a high density coreboard to produce a strong finished panel. Panels can be post-formed to create a seamless, curved edge detail.

HPL is suitable for use in areas of high traffic and reasonably robust conditions.

HPL COLOURS
Compact Grade Laminate (CGL)

Cairngorm
Compact Grade Laminate (CGL)

Constructed from multiple layers of high quality kraft paper, reinforced by thermosetting resins under high pressure and temperature. This produces tough, high density, totally waterproof and hygienic panels that have a high level of strength.

All visible CGL panel edges are machined to a smooth round profile.

CGL is the ideal choice for washroom and changing room areas that have very high traffic, robust and wet conditions.

CGL COLOURS
Compact Density Fibreboard (CDF)

Cambrian
Compact Density Fibreboard (CDF)

CDF is a robust high density, black coloured wood fibreboard. Stability, scratch resistance, splash water resistance and flame retardancy are among the characteristics of this sophisticated natural wood composite.

All visible CDF panel edges are machined to a smooth round profile.

CDF is an excellent choice when additional durability is required.

CDF COLOURS
