Healthcare IPS Panel System

A complete IPS panel system fully compliant with NHS Estate Guidelines and HBN specifications.

Specifier Info
NHS HBN GUIDELINES

Healthcare IPS

The Two main factors in Combating Healthcare Acquired Infections (HAI) in hospitals and clinical environments is a high level of cleanliness and the use of anti-bacterial materials.

Healthcare IPS (Integrated Panel Systems) are a vital method in concealing plumbing services and systems, both ergonomically and functionally. Encasing the plumbing behind a panel system reduces the amount of surfaces bacteria can settle and grow.

It is imperative that the panels systems are resistant to water splashed during normal use or during aggressive cleaning because delamination provides a damp harbour for bacterial growth, which is why our panel systems, in Compact Grade Laminate or High Pressure Laminate fulfil the requirements and regulation set into the latest Department of Health Standard (HBN) 00-10 Parts A, B and C – the latest of which adds sustainability and infection control to healthcare IPS requirements.

IPS panels can be used in any commercial washroom setting and can be manufactured to meet any size and shape requirements, the minimum requirement for panels being 850mm wide.

Healthcare Washroom panel systems are available in full or half height. In a range of colour schemes, in HPL or CGL and as a Boxed out or recessed panel system, manufactured as a complete kit at our factory in West Yorkshire.

Standard
Pre Assembled Boxed Unit

Cubicle Centre’s boxed-out Healthcare panel systems are ideal for refurbishment or additional works projects because they provide the least disruption due to their fast installation. These units project out from the finished wall surface to provide a self contained duct – the plumbing is concealed behind the whole unit with easy to access doors which can be hinged or lockable. Boxed out kits do not require any alterations to existing structures provided they are fitted to existing structural or partition walls.

Units are available as full height or shelf height assemblies.

Standard Pre Assembled Recessed Unit (Plywood Frame)

In a new build project where a service duct can be contructed within the partition wall, our recessed frames units will fit directly into the drywall apertures creating a flush panel solution. This offers a space saving and aesthetically pleasing finish.

With some additional work, these panels can also be cut into existing partition walls by a competent builder/joiner.

These units are typically full height with panels fixed with keku clips as standard and or hinges and locks supplied as extra.

Benefits of Healthcare IPS

  • Durable, IPS panel system manufactured to suit individual situations
  • Factory assembled Box Unit option delivers a uniform, high quality finish to every complete panel system supplied
  • Save valuable time with a simple specification process
  • Easy to install reducing on-site costs
  • Reduced impact on the environment

Hinges and locks

Integrated Plumbing Systems are available with additional options for hinged and lockable panels.

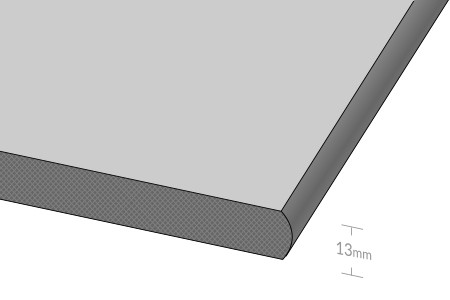

For 13mm CGL panels we offer a side and top opening hinge from Vela, or the Grass Tiomos concealed cup hinge from Häfele, and a cylinder cam lock, also from Häfele.

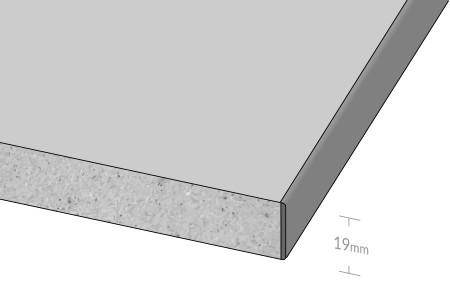

18mm HPL panels are specified with either Vela side and top opening hinges or Häfele concealed cup hinges. For HPL panels, Häfele rim locks are specified.

Standard
Pre Assembled Boxed Unit

Cubicle Centre’s boxed-out Healthcare panel systems are ideal for refurbishment or additional works projects because they provide the least disruption due to their fast installation. These units project out from the finished wall surface to provide a self contained duct – the plumbing is concealed behind the whole unit with easy to access doors which can be hinged or lockable. Boxed out kits do not require any alterations to existing structures provided they are fitted to existing structural or partition walls.

Units are available as full height or shelf height assemblies.

Standard Pre Assembled Recessed Unit (Plywood Frame)

In a new build project where a service duct can be contructed within the partition wall, our recessed frames units will fit directly into the drywall apertures creating a flush panel solution. This offers a space saving and aesthetically pleasing finish.

With some additional work, these panels can also be cut into existing partition walls by a competent builder/joiner.

These units are typically full height with panels fixed with keku clips as standard and or hinges and locks supplied as extra.

Benefits of Healthcare IPS

  • Durable, IPS panel system manufactured to suit individual situations
  • Factory assembled Box Unit option delivers a uniform, high quality finish to every complete panel system supplied
  • Save valuable time with a simple specification process
  • Easy to install reducing on-site costs
  • Reduced impact on the environment

Questions about Healthcare IPS Panel System?

Not sure whether Healthcare IPS Panel System is right for you? Questions about installation, specifications or design?
Call our friendly team for technical and buying advice on: (01924) 457600

Request a Price

Downloads

Download CAD File for Healthcare IPS Panel SystemDownload CAD File for Healthcare IPS Panel System

CAD Block
.dwg | 76kb

Download BIM File for Healthcare IPS Panel SystemDownload BIM File for Healthcare IPS Panel System

BIM Object
.rfa | 1.3mb

Download Specification Sheet for Healthcare IPS Panel SystemDownload Specification Sheet for Healthcare IPS Panel System

Specification Sheet
.pdf | 156kb

Download Image BoardDownload Image Board

Image Board
.pdf | 216kb

Popular HPL Colours

Greenlam Ozone Image Swatch

Ozone
284

Greenlam Oakk Colour Swatch

Oak
738

Greenlam Dusty Jade Colour Swatch

Dusty Jade
290

Greenlam Moonstone image swatch

Moonstone
133

Greenlam Dust Image Swatch

Dust
268

Greenlam Dark Grey Image Swatch

Char Grey
279

Greenlam Pure Ash

Pure Ash
9610

Greenlam Phillipine Teak colour swatch

Phillipine Teak
5003

Greenlam Designer White image swatch

Designer White
111

Greenlam Electric Blue Colour Swatch

Electric Blue
291

Standard Healthcare HPL Colours
View Healthcare CGL Colours

Standard Dimensions

Hospital and healthcare panels

Overall Height: Varies to suit
Overall Width: 800mm as standard
Panels Systems: 13mm

Boxed Unit: 20mm thick front panels with

Healthcare IPS Panel System Specification

This product is associated with:
NBS Create clause – 25-85-45/120 Duct and wall panel lining system
NBS clause – K32 Panel cubicles / duct and wall linings / screens (160 DUCT LININGS – PRE-PLUMBED PANELS AND PROPRIETARY FRAMES)

Healthcare IPS Create Specification
Find Me On NBS Plus
