Pendle® Fast Delivery Toilet Cubicles

Do you need your toilet cubicles quickly?

Our Pendle range can be dispatched within 48 hours, so you can finish your project in time. These cubicles come in standard sizes, and can be cut to your requirements on site.

Pendle toilet cubicles are popular with small businesses and large offices, and in washrooms for shops and showrooms.

Specifier Info

Overview

  • Full-height aluminium channels for extra-strong hinges
  • Melamine Faced Chipboard (MFC) panels with an extra thick edging of 2mm PVC to keep your panels pristine for longer
  • Brushed metal cubicle legs, latches, and indicator faces
  • Full installation guide for easy on-site assembly
  • Usually dispatched within 48 hours

Specification

Price Scale: Low-Medium Partiton Depth: Supplied at 1800mm
Availability: 48 hrs to dispatch Cubicle Height: 1950mm
Environment: Dry Only Panels: 18mm MFC
Fittings: SAA / PVC channels Edging: Solid PVC

How to Order Your Pendle Toilet Cubicles

1. Choose between Grey, Cream or Woodgrain panel option

2. Decide how many door packs (box A) and partition packs (box B) you require (see configurations diagram below)

3. Order online at our sister site Plumbware.co.uk

Any questions? Call our team for advice on (01924) 457600

Order Pendle Cubicles Online

Configurations

The diagram below shows some typical configurations for Pendle washroom cubicles.
Door Pack (Box-A) and Partition Pack (Box-B).

Pendle toilet cubicle configurations

Downloads

Download CAD FileDownload CAD File

CAD Block
.dwg | 155kb

Download Specification Sheet” width=Download Specification Sheet” width=

Specification Sheet
.pdf | 951kb

Download Image BoardDownload Image Board

Image Board – Grey
.pdf | 442kb

Download Image BoardDownload Image Board

Image Board – Cream
.pdf | 192kb

Pendle Colour Choices

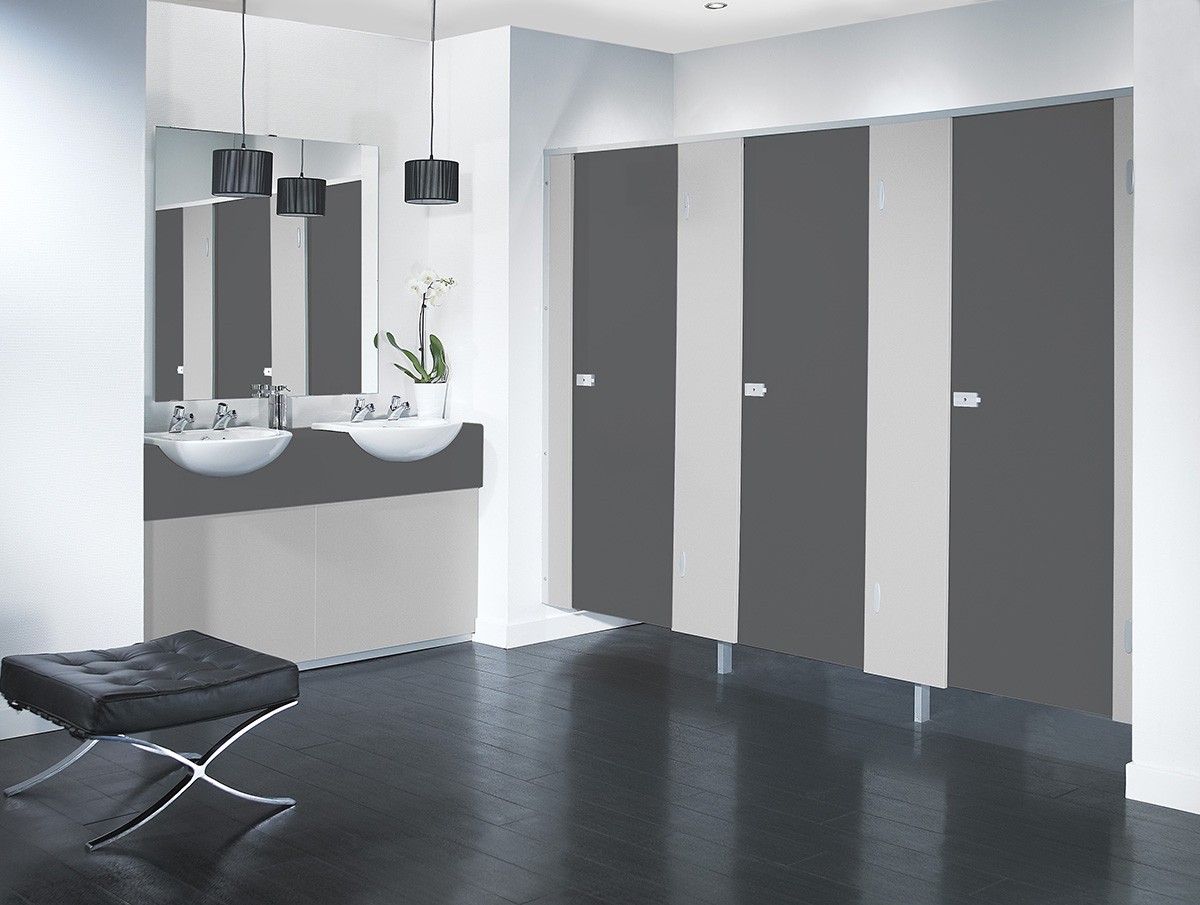

Pendle Grey Cubicles

Grey option

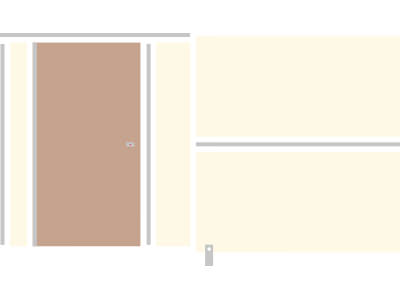

Pendle Cream Cubicles

Cream option

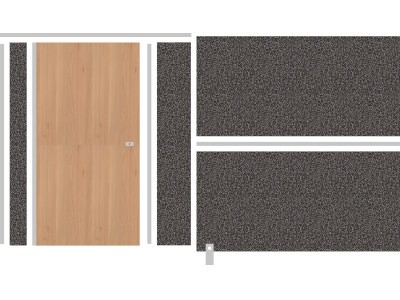

Pendle Woodgrain

Woodgrain option

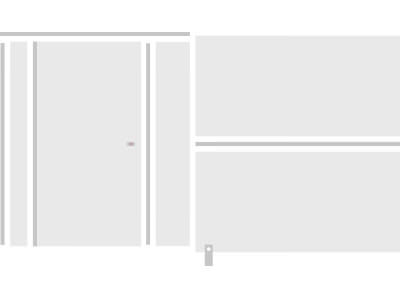

Pendle Grey Cubicle

Plain Grey option

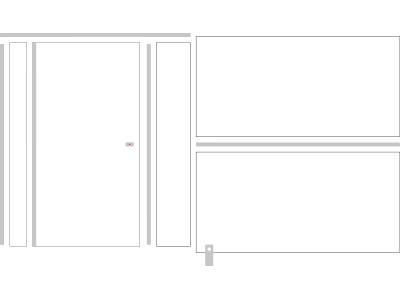

Pendle White Cubicle

White option

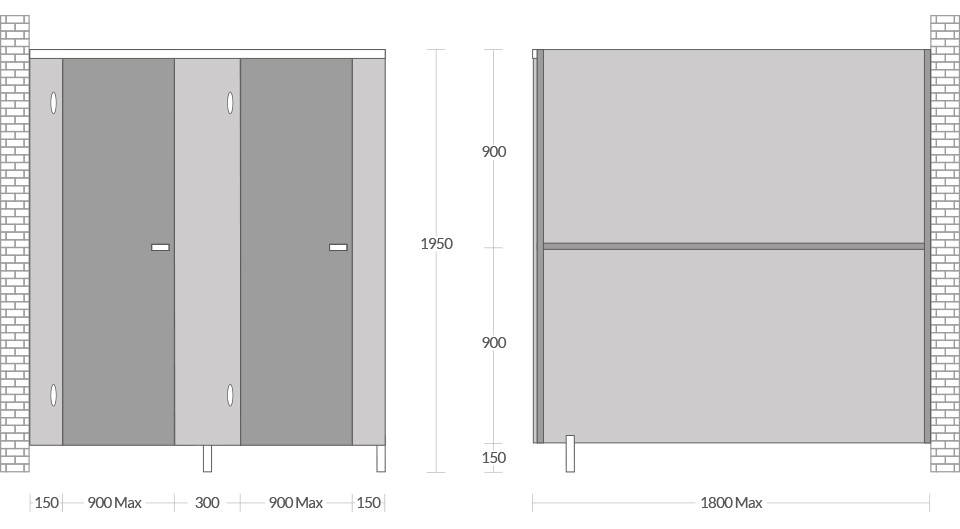

Standard Dimensions

Pendle toilet cubicle dimensions

Overall Height: 1950mm
Floor Clearance: 150mm
Door Width: 950mm (max)
Door Opening: 900mm (max)
Partition Height: 1800mm
Partition Depth: 1800mm (max)
Start/End Fascia: 150mm
Middle Fascia 300mm

Pendle Cubicle Fittings

Metal toilet cubicle leg - Pendle

Cubicle Leg

Toilet cubicle latch - Pendle

Cubicle Latch

Toilet cubicle lock indicator face - Pendle

Indicator Face

Full height cubicle door hinge - pendle

Full-Height Channel Hinge

Panel Material

Melamine Faced Chipborad (MFC)

Melamine Faced Chipboard (MFC)

Melamine Faced Chipboard incorporates two decorative melamine surfaces bonded to both sides of high density chipboard under high pressure and temperature.

All visible MFC panels have impact resistant, PVC edging applied.

MFC is a cost effective, hygienic and lightweight solution for all non-wet toilet areas.

Order Pendle toilet cubicles from Plumbware.co.uk
