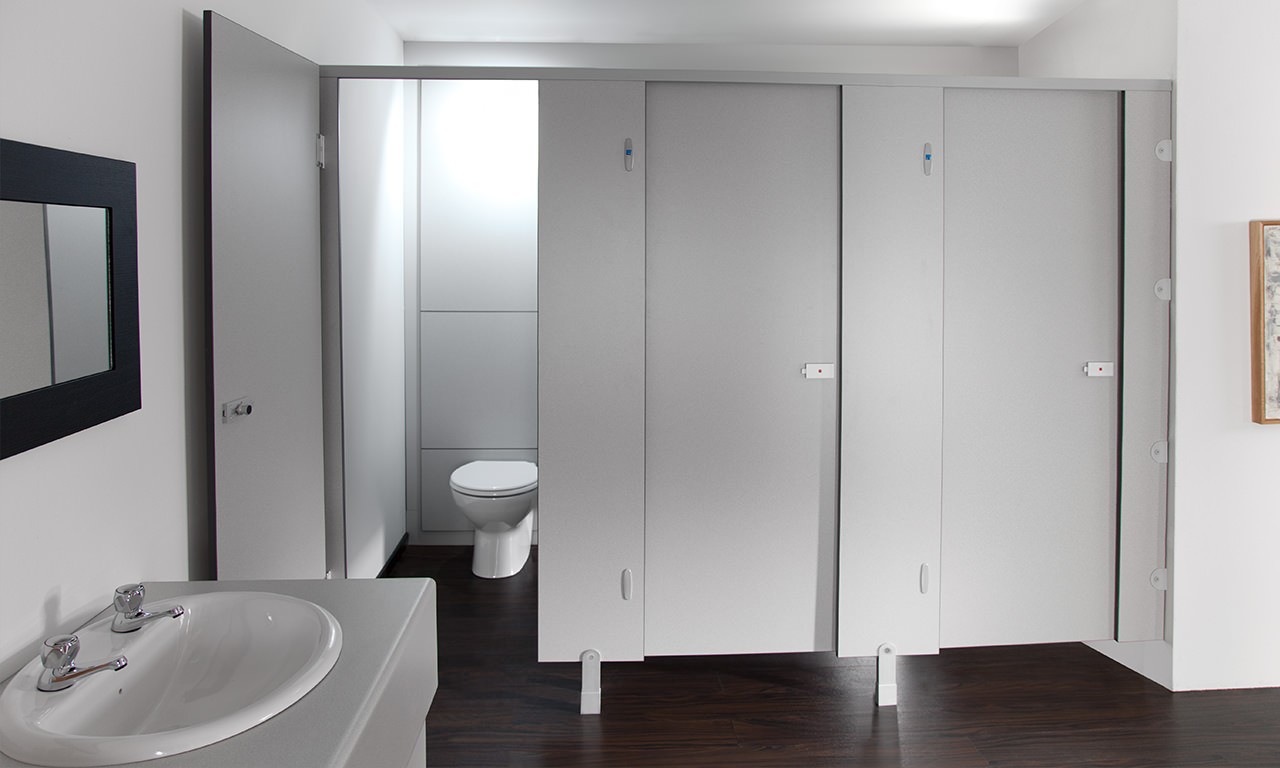

Pennine® Budget Toilet Cubicles

Is your project on a tight budget?

Pennine cubicles are a cost effective solution and can be supplied quickly. All the key functional qualities are included for a practical washroom.

Straightforward colour options for MFC panels make Pennine suited to most dry washroom areas.

Specifier Info

Overview

  • Straightforward colour choices include Speckled or Plain Grey, White or Cream
  • Melamine Faced Chipboard (MFC) panels with an extra thick edging of 2mm PVC keep your panels pristine for longer
  • Rounded and sealed edges protect against moisture
  • Tamper-proof brackets and hinges can only be operated with an Allen or hex key, not with a coin or screwdriver
  • Quickly despatched

Specification

Price Scale: Low Partiton Depth: 1500mm (standard)
Availability: 5 – 10 working days Cubicle Height: 1955mm (standard)
Environment: Dry only Panels: 18mm MFC
Fittings: SAA Edging: Solid PVC

Questions about your toilet cubicles?

Not sure whether Pennine is right for you? Questions about installation, specifications or design?
Call our friendly team for technical and buying advice on: (01924) 457600

Request a Price

Downloads

Download CAD FileDownload CAD File

CAD Block
.dwg | 103kb

Download BIM FileDownload BIM File

BIM Object
.rfa | 856kb

Download Specification Sheet” width=Download Specification Sheet” width=

Specification Sheet
.pdf | 201kb

Download Image BoardDownload Image Board

Image Board
.pdf | 233kb

Pennine Cubicle Colours

Cubicle colours 1 Pennine

Speckled Light Grey

Plain Grey

White

Cream

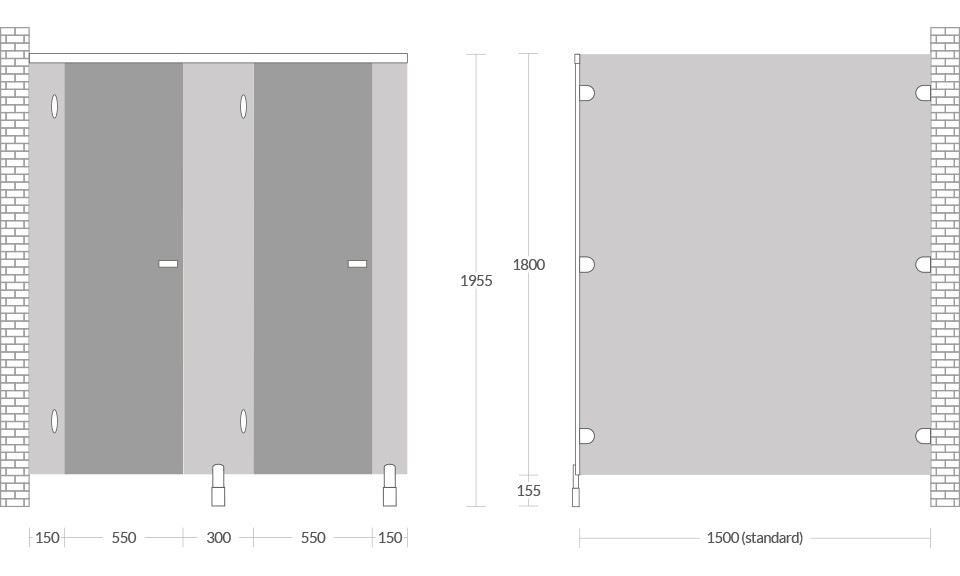

Standard Dimensions

Cubicle dimensions Pennine

Overall Height: 1955mm
Floor Clearance: 155mm
Door Width: 600mm
Door Opening: 550mm
Partition Height: 1800mm
Partition Depth: 1500mm
Start/End Fascia: 150mm
Middle Fascia 300mm

Pennine Cubicle Fittings

Cubicle leg Pennine

Cubicle Leg

Cubicle latch Pennine

Cubicle Latch

Indicator face Pennine

Indicator Face

Cubicle safety hinge Pennine

Heavy-Duty Door Hinge

Panel Material

Melamine Faced Chipborad (MFC)

Melamine Faced Chipboard (MFC)

Melamine Faced Chipboard incorporates two decorative melamine surfaces bonded to both sides of high density chipboard under high pressure and temperature.

All visible MFC panels have impact resistant, PVC edging applied.

MFC is a cost effective, hygienic and lightweight solution for all non-wet toilet areas.

NBS Specification

This product is associated with:
NBS Create clause – 25-05-60/160 Panel cubicle system
NBS clause – K32 Panel cubicles / duct and wall linings / screens (120 PANEL CUBICLES)
