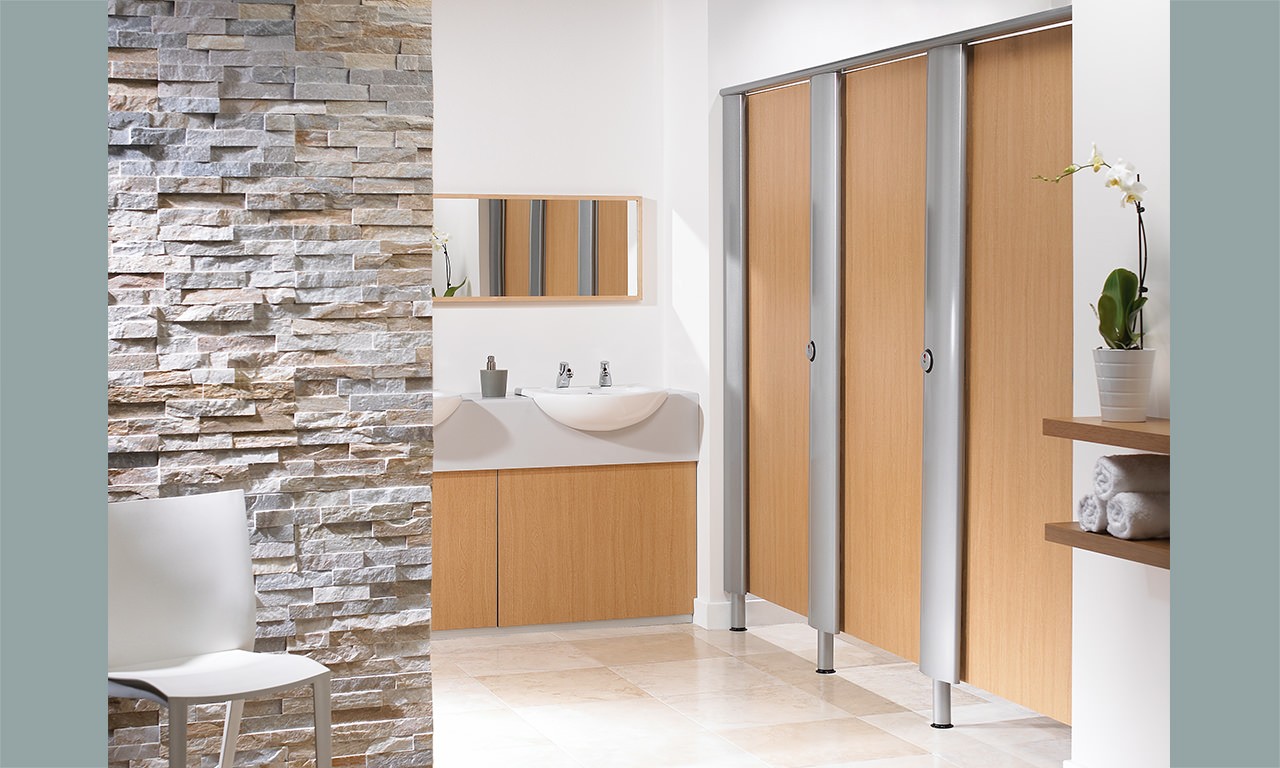

Cotswold® Fully Framed Cubicle System

Beauty and the Beast combined…or at least the cubicle equivalent.

A fully framed system and durable panels mean these cubicles will stand the test of time. Huge colour choice and no visible fixings mean it will also look great.

Is a combination of style and durability what you are looking for?

Cotswold cubicles are popular in offices, theatres and restaurants.

Specifier Info

Overview

  • Design combines strength with elegance
  • No fixings visible from the exterior
  • Metal pilasters and header rail never rust
  • Compact Grade Laminate (CGL) doors and partitions are water proof and slam-proof
  • Fully framed system is durable and easily installed

Specification

Price Scale: High Partiton Depth: 1500mm (standard)
Availability: 10 – 20 working days Cubicle Height: 1980mm (standard)
Environment: Dry and Wet Panels: 13mm CGL
Fittings: Robust (powder-coated) Edging: Rounded (black)

Questions about your toilet cubicles?

Not sure whether Cotswold is right for you? Questions about installation, specifications or design?
Call our friendly team for technical and buying advice on: (01924) 457600

Request a Price

Downloads

Download CAD FileDownload CAD File

CAD Block
.dwg | 256kb

Download BIM FileDownload BIM File

BIM Object
.rfa | 1.1mb

Download Specification Sheet” width=Download Specification Sheet” width=

Specification Sheet
.pdf | 225kb

Download Image BoardDownload Image Board

Image Board
.pdf | 312kb

Popular Colours for Cotswold Cubicles

Cubicle colours 1 Cotswold

Faggio Giapponese
1852

Oak
T202

Acero Italiano
4327

Zebrano Naturale
4390

Rovere Zadar
4456

Rovere Asburgo Naturale
4520

Cubicle colours 2 Cotswold

Rovere Asburgo
4519

Selenio Nero
0997

Selenio Silver
1017

Colorlam Bianco
3194

Spot Bianco
9137

Abstract Aluminium
3283

View CGL Colours
View MFC Colours

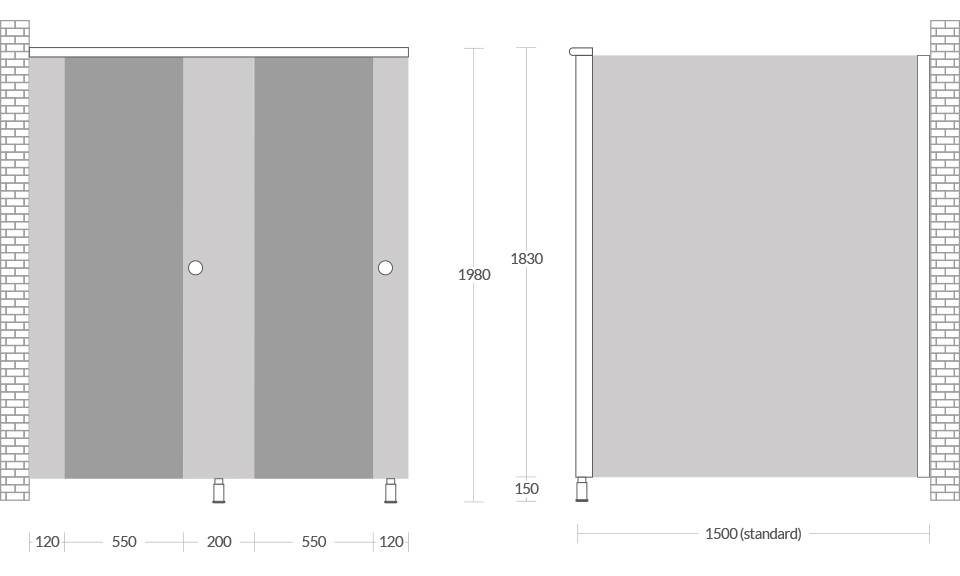

Standard Dimensions

Cubicle dimensions Cotswold

Overall Height: 1980mm
Floor Clearance: 150mm
Door Width: 600mm
Door Opening: 550mm
Partition Height: 1800mm
Partition Depth: 1500mm
Start/End Fascia: 120mm
Middle Fascia 200mm

Cotswold Cubicle Fittings

Indicator face Cotswold

Indicator Face

Wide base cubicle leg Cotswold

Wide Base Cubicle Leg

Robust cubicle latch Cotswold

Robust ‘Single Action’ Latch

Safety hinge Cotswold

Hidden Safety Hinge

Panel Material

Compact Grade Laminate Panel

Compact Grade Laminate (CGL)

Constructed from multiple layers of high quality kraft paper, reinforced by thermosetting resins under high pressure and temperature.  This produces tough, high density, totally waterproof and hygienic panels that have a high level of strength.

All visible CGL panel edges are machined to a smooth round profile.

CGL is the ideal choice for washroom and changing room areas that have very high traffic, robust and wet conditions.

To prove just how durable our CGL panels are, we put them to the ultimate test.

View CGL Panel Test Video

NBS Specification

This product is associated with:
NBS Create clause – 25-05-60/130 Fully-framed panel cubicle system
NBS clause – K32 Panel cubicles / duct and wall linings / screens (112 FULLY FRAMED PANEL CUBICLES)

Create CGL Specification
Create MFC Specification
