Pendle® CGL Fast Delivery Toilet Cubicles

Do you need your toilet cubicles quickly?

Our Pendle range can be dispatched within 48 hours, so you can finish your project in time. These cubicles come in standard sizes, and can be cut to your requirements on site.

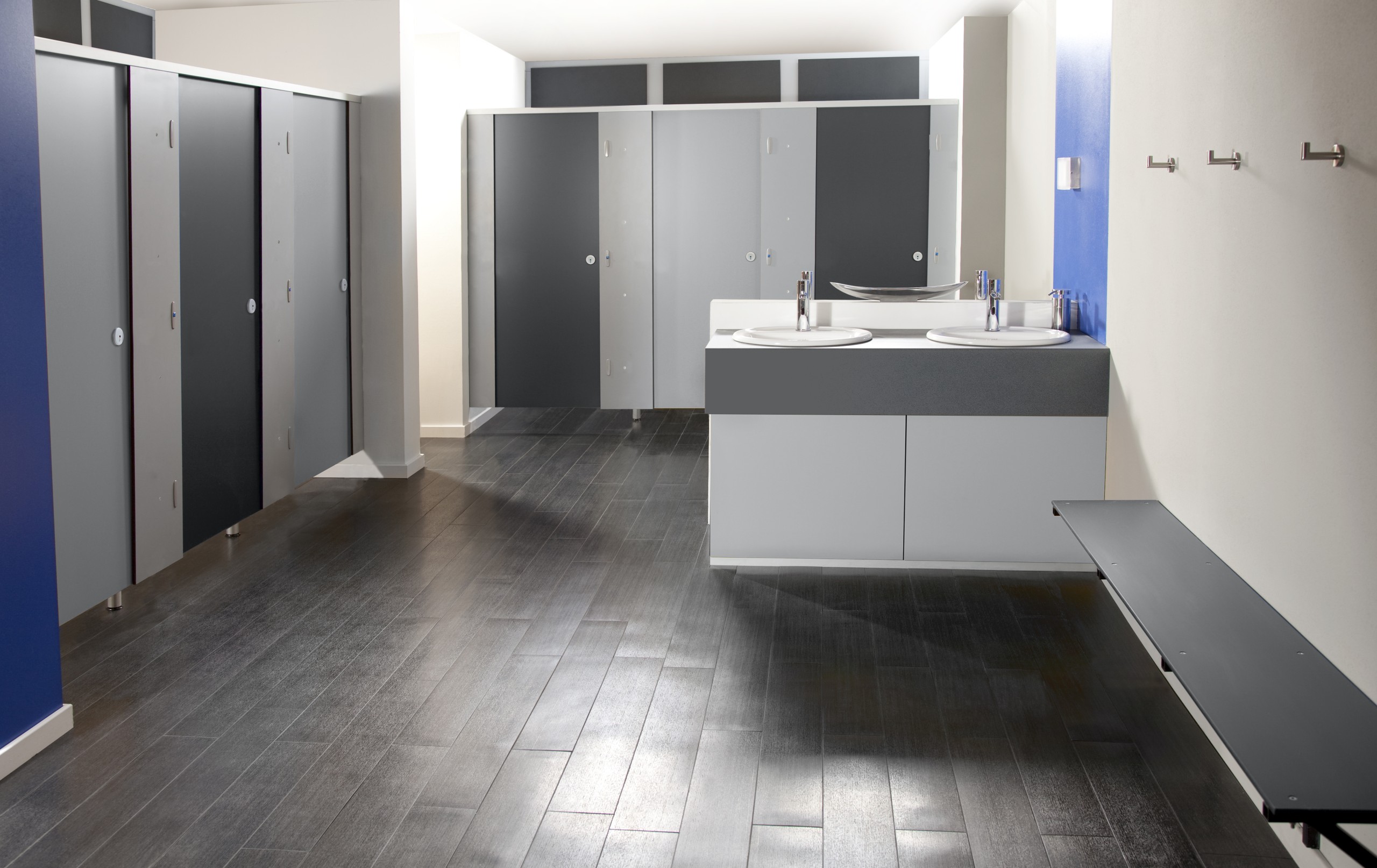

Pendle toilet cubicles are popular with small businesses and large offices, and in washrooms for shops and showrooms for both wet and dry areas.

Specifier Info

Overview

Full-height aluminium channels for extra-strong hinges
Compact Grade Laminate (CGL) panels
SAA cubicle legs, latches, and indicator faces
Full installation guide for easy on-site assembly
Usually dispatched within 48 hours
Anti-rust fittings and waterproof panels to prevent mildew and bacteria growth

Specification

Price Scale:	Height	Partiton Depth:	Supplied at 1800mm
Availability:	48 hrs to dispatch	Cubicle Height:	1950mm
Environment:	Dry and Wet	Panels:	13mm CGL
Fittings:	SAA / PVC channels	Edging:	Rounded black

How to Order Your Pendle Toilet Cubicles

1. Choose between Plain Grey and Stone Grey Options

2. Decide how many door packs (box A) and partition packs (box B) you require (see configurations diagram below)

3. Order online at our sister site Plumbware.co.uk

Any questions? Call our team for advice on (01924) 457600

Order Pendle Cubicles Online

Configurations

The diagram below shows some typical configurations for Pendle washroom cubicles.

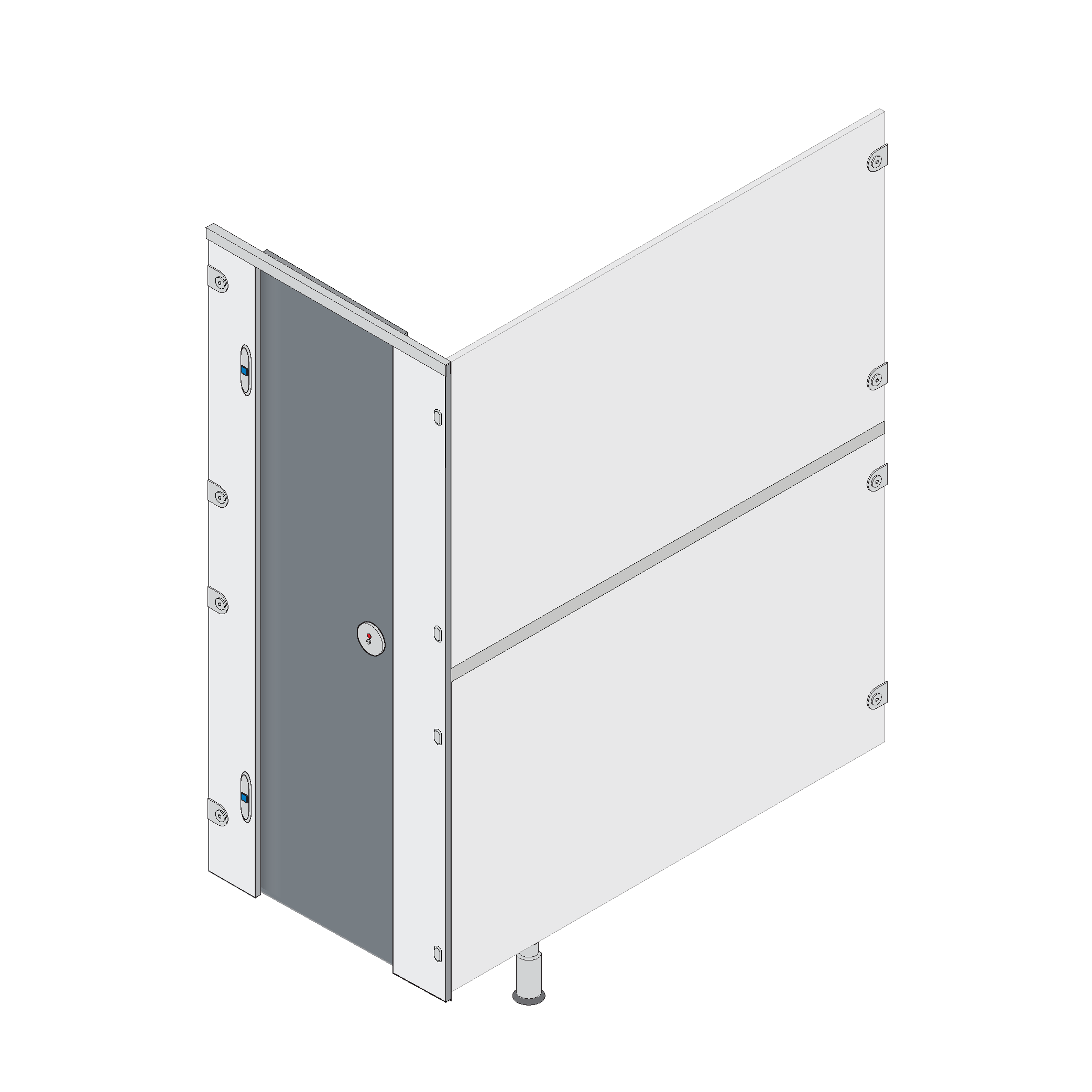

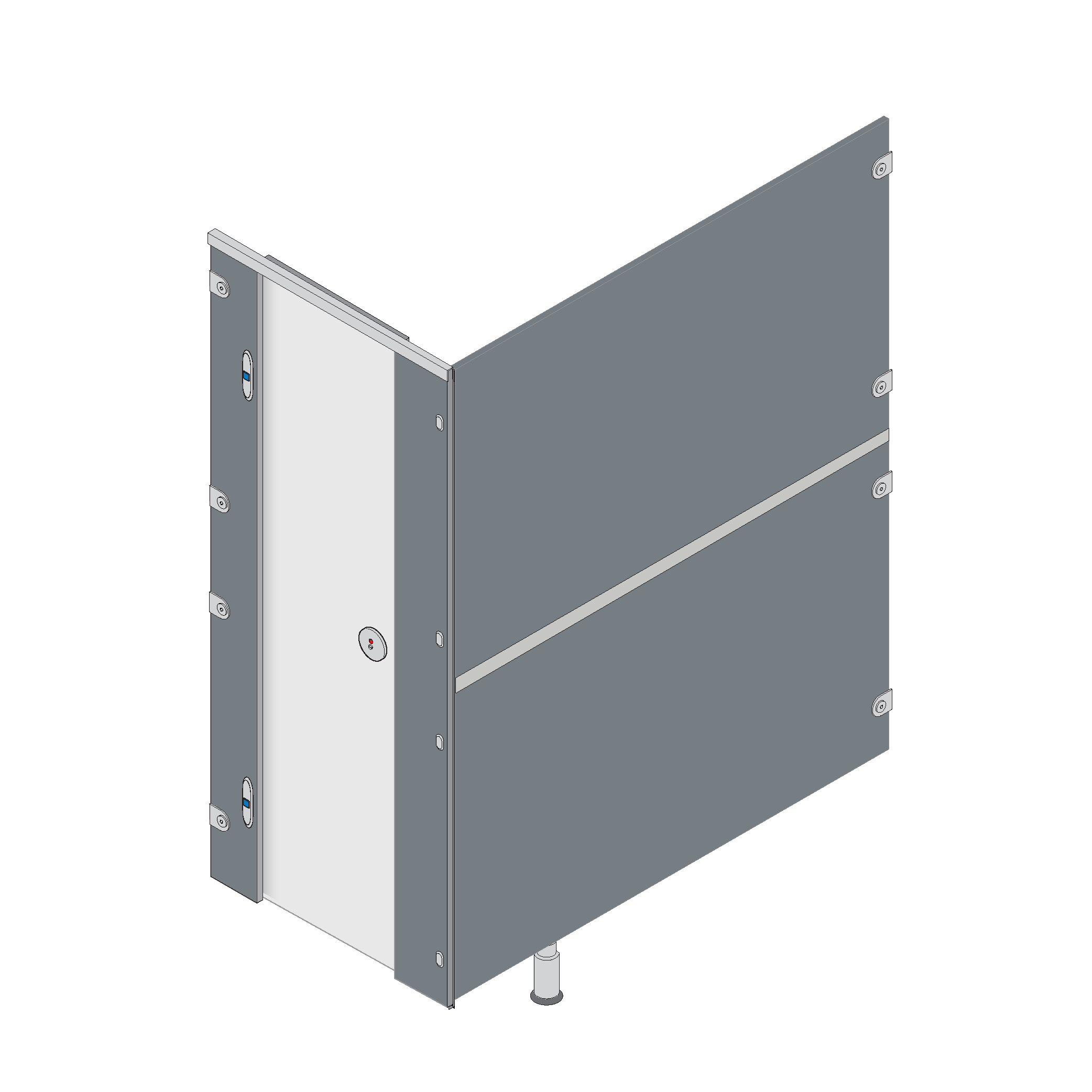

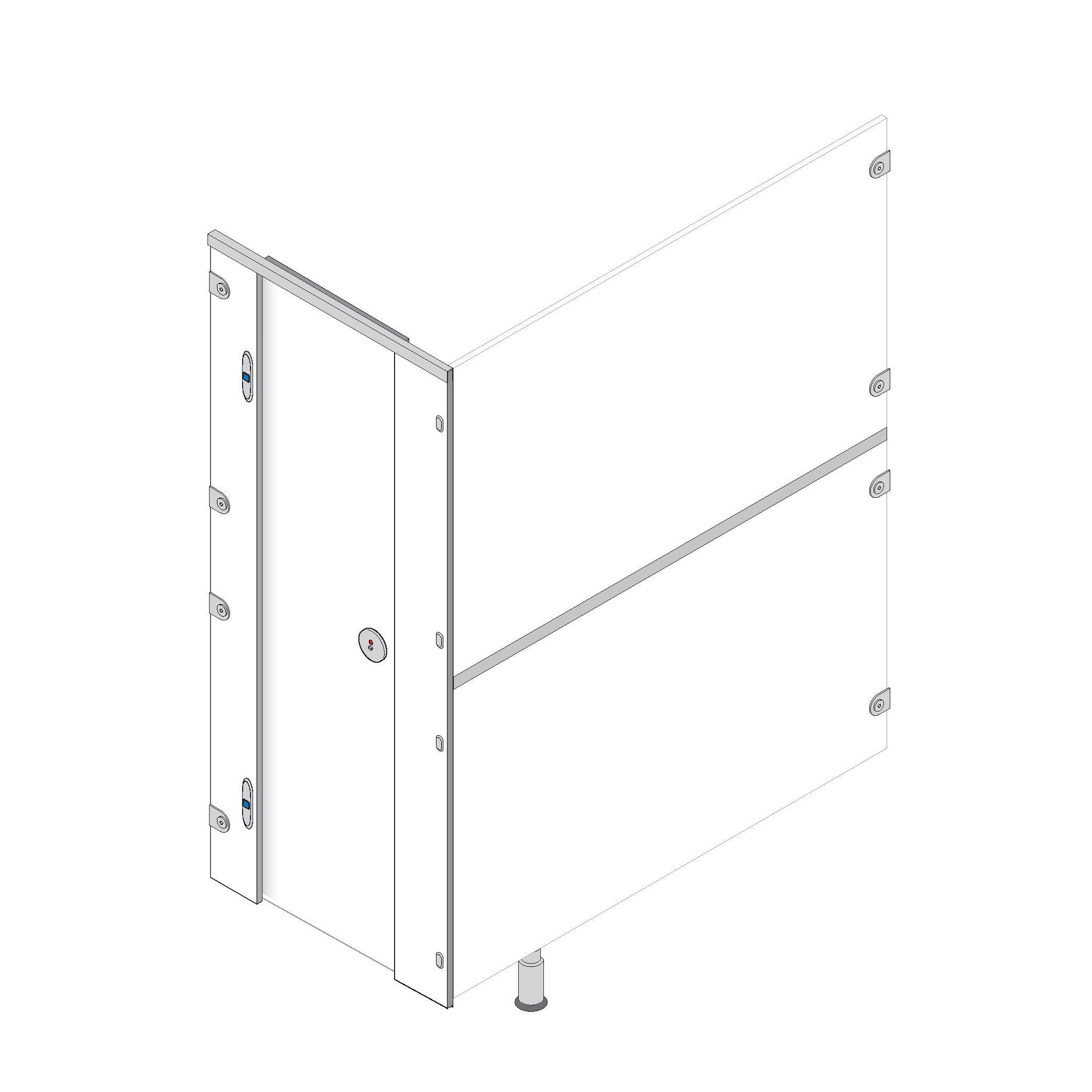

Door Pack (Box-A) and Partition Pack (Box-B).
Pendle toilet cubicle configurations

Downloads

CAD Block
.dwg | 155kb

Specification Sheet
.pdf | 951kb

PendleCGL Colour Options

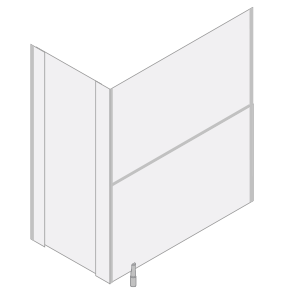

Plain Grey

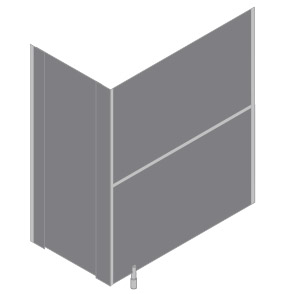

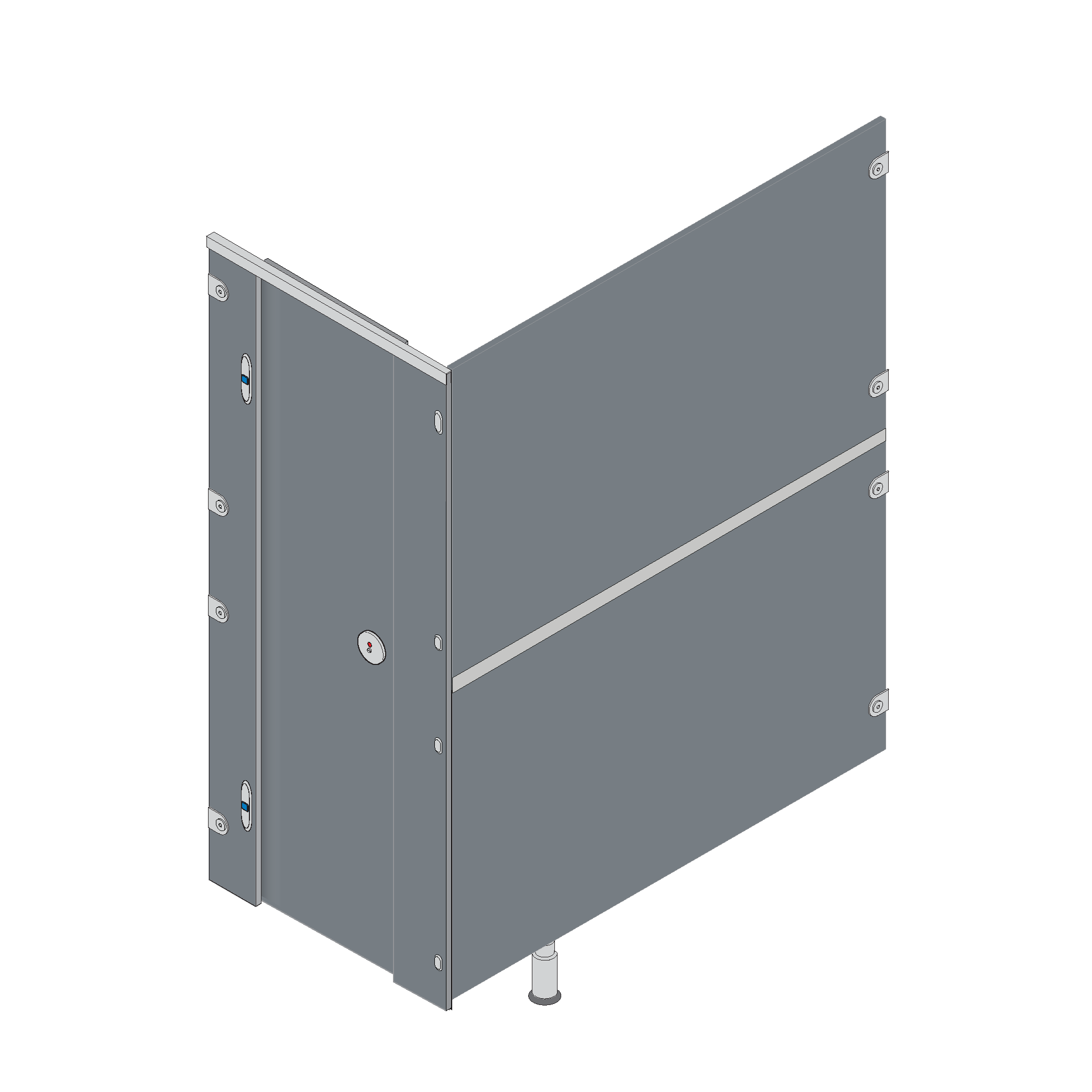

Stone Grey

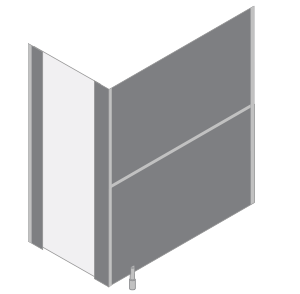

Plain Grey | Stone Grey

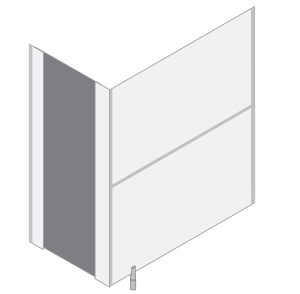

Stone Grey | Plain Grey

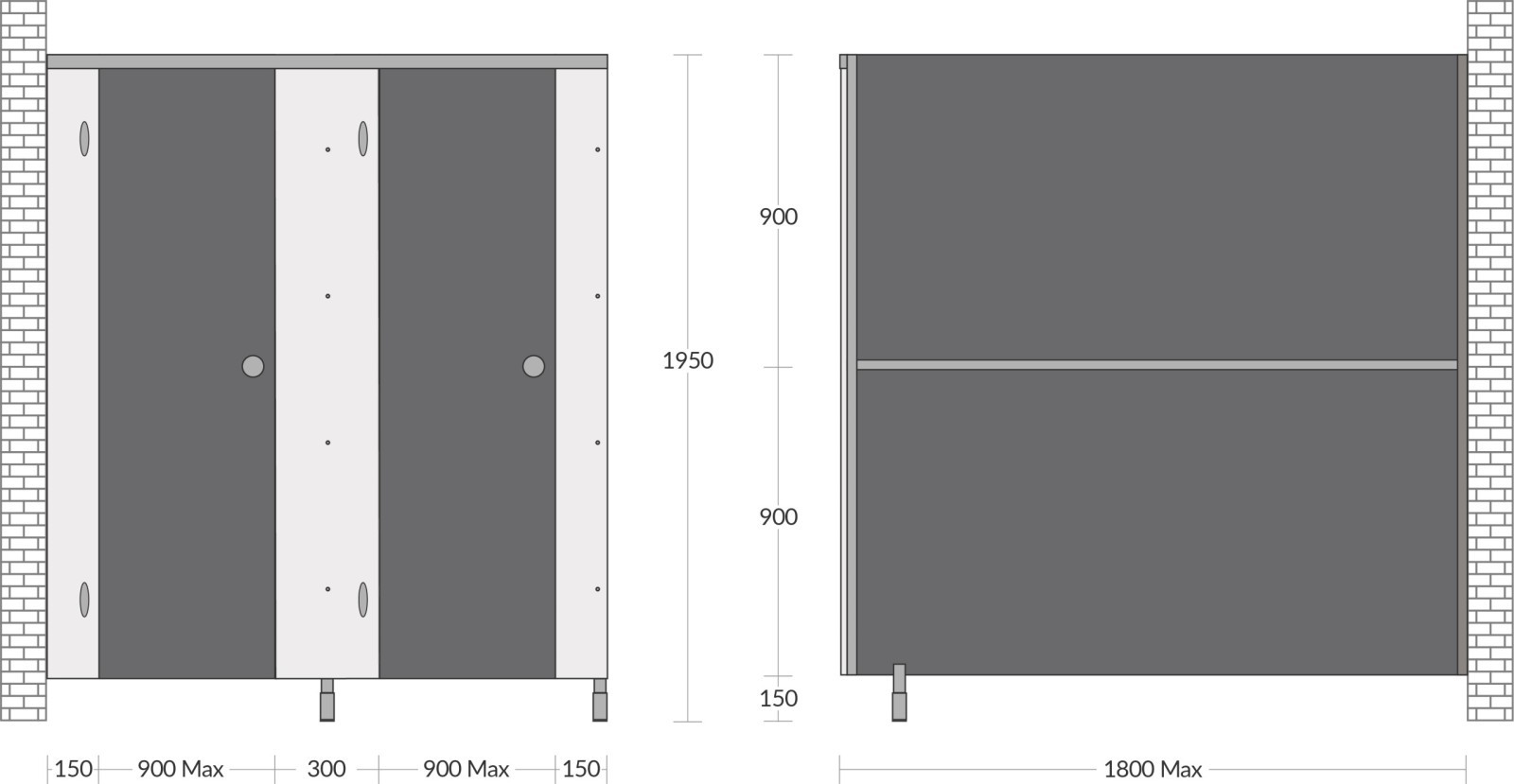

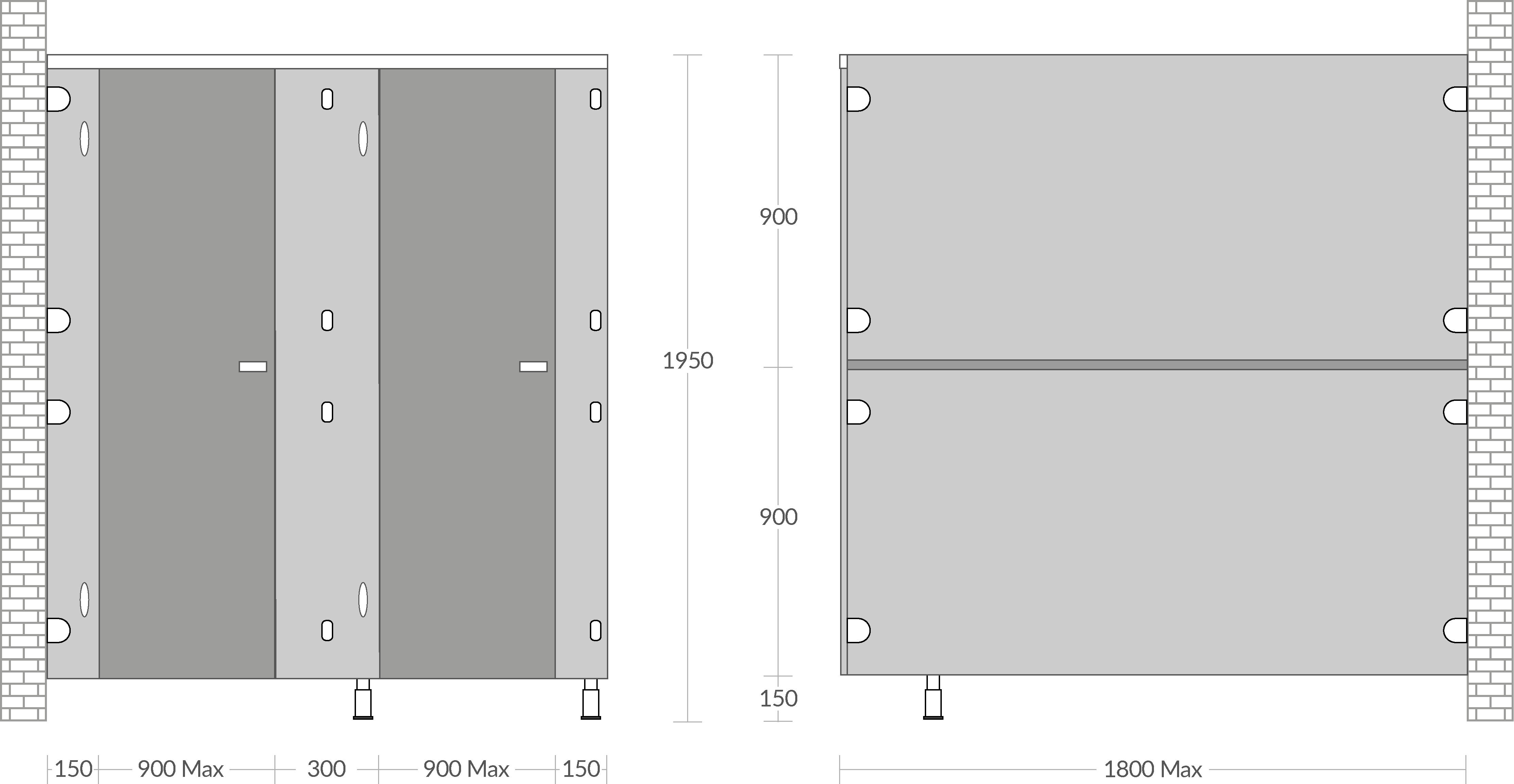

Standard Dimensions

Overall Height:	1950mm
Floor Clearance:	150mm

Door Width:	950mm (max)
Door Opening:	900mm (max)

Partition Height:	1800mm
Partition Depth:	1800mm (max)

Start/End Fascia:	150mm
Middle Fascia	300mm

Pendle Cubicle Fittings

Cubicle Leg

Cubicle Latch

Indicator Face

Full-Height Channel Hinge

Panel Material

CGL panel material

Compact Grade Laminate (CGL)

Constructed from multiple layers of high quality kraft paper, reinforced by thermosetting resins under high pressure and temperature. This produces tough, high density, totally waterproof and hygienic panels that have a high level of strength.

All visible CGL panel edges are machined to a smooth round profile.

CGL is the ideal choice for washroom and changing room areas that have very high traffic, robust and wet conditions.

To prove just how durable our CGL panels are, we put them to the ultimate test.
